Overview

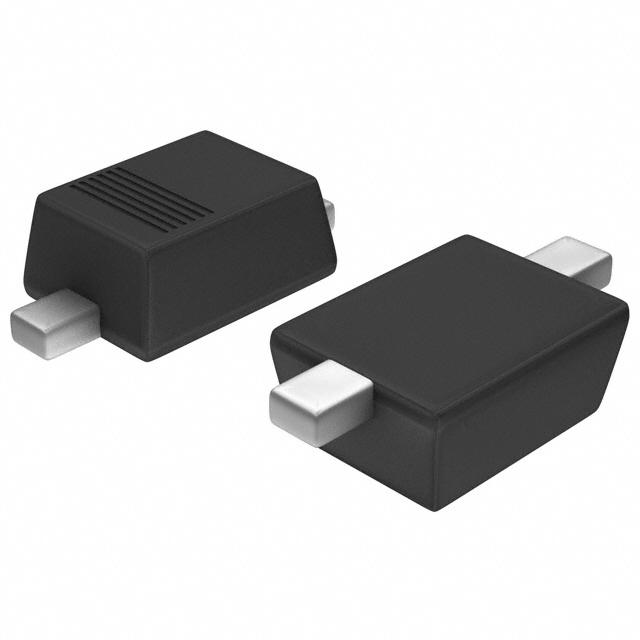

The BZX84J-C5V1 is a general-purpose Zener diode produced by Nexperia USA Inc. This component is designed in a very small and flat lead Surface-Mounted Device (SMD) plastic package, specifically the SOD323F (SC-90) package. It is part of Nexperia’s extensive portfolio of diodes, which are used across various industries including automotive, industrial, power, computing, consumer, mobile, and wearables. The BZX84J-C5V1 is particularly suited for applications requiring voltage regulation and stabilization due to its precise Zener voltage characteristics.
Key Specifications
| Parameter | Value |
|---|---|
| Type number | BZX84J-C5V1 |
| Package | SOD323F (SC-90) |
| Size (mm) | 1.7 x 1.25 x 0.7 |
| Nominal Zener Voltage (V) | 5.1 |
| Test Current (mA) | 5 |
| Tolerance +/- | Approx. 5% |
| Minimum Zener Voltage (V) | 4.8 |
| Maximum Zener Voltage (V) | 5.4 |
| Maximum Forward Current (mA) | 250 |
| Total Power Dissipation (mW) | 550 |
| Non-repetitive Peak Reverse Power Dissipation (W) | 40 |
| Maximum Junction Temperature (°C) | 150 |
| Configuration | Single |
Key Features
- Silicon planar Zener diode with precise voltage regulation.
- Small SOD323F (SC-90) package, ideal for space-constrained designs.
- Nominal Zener voltage of 5.1 V with an approximate 5% tolerance.
- Maximum forward current of 250 mA and total power dissipation of 550 mW.
- Non-repetitive peak reverse power dissipation of 40 W.
- Maximum junction temperature of 150 °C.
Applications
The BZX84J-C5V1 is versatile and can be used in a variety of applications, including:
- Voltage regulation and stabilization in power supplies.
- Overvoltage protection in electronic circuits.
- Signal clipping and clamping in audio and communication systems.
- Automotive and industrial control systems.
- Consumer and mobile electronic devices.
Q & A
- What is the nominal Zener voltage of the BZX84J-C5V1? The nominal Zener voltage is 5.1 V.
- What is the package type of the BZX84J-C5V1? The package type is SOD323F (SC-90).
- What is the maximum forward current of the BZX84J-C5V1? The maximum forward current is 250 mA.
- What is the total power dissipation of the BZX84J-C5V1? The total power dissipation is 550 mW.
- What is the maximum junction temperature of the BZX84J-C5V1? The maximum junction temperature is 150 °C.
- What are the typical applications of the BZX84J-C5V1? Typical applications include voltage regulation, overvoltage protection, signal clipping, and use in automotive and industrial control systems.
- What is the tolerance range of the BZX84J-C5V1 Zener voltage? The tolerance range is approximately 5%.
- How is the BZX84J-C5V1 packaged for distribution? It is packaged in reels of 3,000 pieces.
- Can the BZX84J-C5V1 be used in high-temperature environments? Yes, it can operate up to a maximum junction temperature of 150 °C.
- Is the BZX84J-C5V1 suitable for surface-mount technology (SMT) assembly? Yes, it is designed for SMT assembly.
