Overview
The BZX585-C16,115 is a single Zener diode manufactured by Nexperia USA Inc. This component is designed to provide voltage regulation and protection in various electronic circuits. It is part of the BZX585 series, known for its reliability and precision in maintaining a constant voltage across its terminals when operated in the reverse-biased mode.

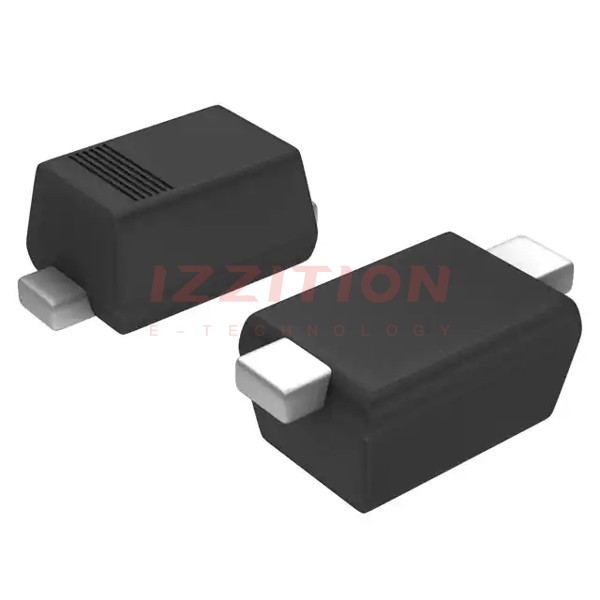

The diode is packaged in the SC-79 or SOD-523 case, which is a surface-mount type, making it suitable for modern PCB designs. It is RoHS compliant and lead-free, adhering to environmental and safety regulations.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Nexperia USA Inc. |
| Package / Case | SC-79, SOD-523 |
| Mounting Type | Surface Mount |
| Voltage - Zener (Nom) (Vz) | 16 V |
| Voltage Tolerance (Max) | ±5% |
| Power - Max | 300 mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Operating Temperature | -65°C ~ 150°C |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| RoHS Status | RoHS3 Compliant |
| Lead Free | Yes |
Key Features
- Voltage Regulation: The BZX585-C16,115 is designed to maintain a constant voltage of 16 V, making it ideal for voltage regulation applications.
- Low Power Consumption: With a maximum power rating of 300 mW, this diode is suitable for low-power electronic circuits.
- Surface Mount Package: The SC-79 or SOD-523 package allows for easy integration into surface-mount PCB designs.
- Wide Operating Temperature Range: The diode can operate within a temperature range of -65°C to 150°C, making it versatile for various environmental conditions.
- RoHS Compliant and Lead-Free: Adheres to environmental regulations, ensuring safety and compliance in electronic devices.
Applications
- Voltage Regulation Circuits: Used to stabilize voltage levels in electronic circuits, ensuring consistent performance.
- Overvoltage Protection: Protects sensitive components from voltage spikes and surges.
- Signal Conditioning: Helps in conditioning signals to maintain consistent voltage levels.
- Power Supplies: Used in power supply circuits to regulate output voltage.
- Consumer Electronics: Found in various consumer electronic devices requiring stable voltage regulation.
Q & A
- What is the nominal Zener voltage of the BZX585-C16,115?
The nominal Zener voltage is 16 V.
- What is the maximum power rating of the BZX585-C16,115?
The maximum power rating is 300 mW.
- What is the package type of the BZX585-C16,115?
The package type is SC-79 or SOD-523.
- What is the operating temperature range of the BZX585-C16,115?
The operating temperature range is -65°C to 150°C.
- Is the BZX585-C16,115 RoHS compliant?
Yes, it is RoHS3 compliant and lead-free.
- What is the forward voltage drop of the BZX585-C16,115?
The forward voltage drop is 1.1 V at 100 mA.
- What is the reverse leakage current of the BZX585-C16,115?
The reverse leakage current is 50 nA at 11.2 V.
- What are common applications of the BZX585-C16,115?
Common applications include voltage regulation circuits, overvoltage protection, signal conditioning, and power supplies.
- Is the BZX585-C16,115 suitable for surface-mount PCB designs?
Yes, it is suitable for surface-mount PCB designs due to its SC-79 or SOD-523 package.
- What is the impedance (Zzt) of the BZX585-C16,115?
The impedance (Zzt) is 40 Ohms.
