Overview

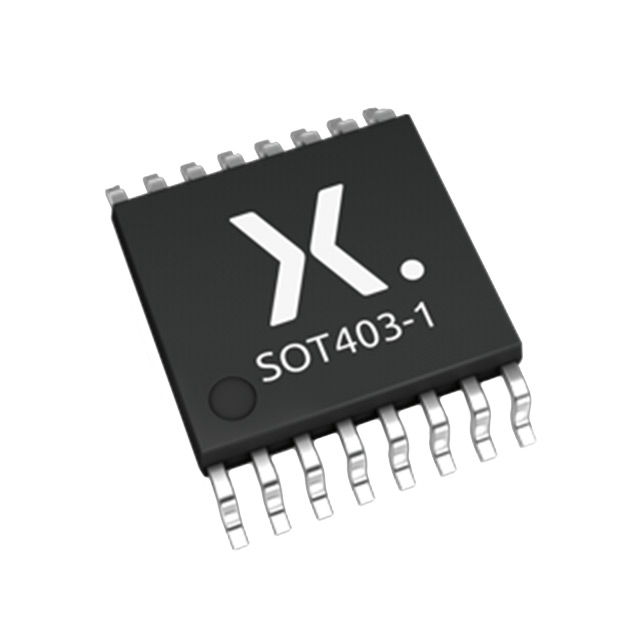

The 74LVC594APW-Q100J is an 8-bit serial-in/serial or parallel-out shift register with a storage register, manufactured by Nexperia USA Inc. This device is designed to handle data shifting and storage efficiently, making it suitable for a variety of applications. It features separate clock and reset inputs for both shift and storage registers, enabling precise control over data transfer. The device supports serial-to-parallel data conversion and can be cascaded using its serial input (DS) and serial output (Q7S) pins.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC594APW-Q100J |
| Package | 16-TSSOP (TSSOP16, SOT403-1) |
| VCC (Supply Voltage) | 1.2 V to 3.6 V |
| Logic Switching Levels | CMOS/LVTTL |
| Output Drive Capability | ±24 mA |
| Propagation Delay (tpd) | 3.1 ns |
| Maximum Frequency (fmax) | 180 MHz |
| Number of Bits | 8 |
| Operating Temperature | -40°C to +125°C |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Separate clock and reset inputs for shift and storage registers.
- Serial input (DS) and serial output (Q7S) for cascading.
- Data shifted on LOW-to-HIGH transitions of the SHCP input, and transferred to the storage register on a LOW-to-HIGH transition of the STCP input.
- LOW level on SHR or STR resets the corresponding register.
- Inputs can be driven from either 3.3 V or 5 V devices, making it suitable for mixed voltage environments.
- Schmitt-trigger action at all inputs for tolerance of slower input rise and fall times.
- IOFF circuitry for partial power-down mode operation, preventing backflow current when powered down.
- Overvoltage tolerant inputs up to 5.5 V.
- CMOS low power dissipation.
- Direct interface with TTL levels.
- Complies with JEDEC standards: JESD8-7A, JESD8-5A, JESD8-C/JESD36.
Applications
The 74LVC594APW-Q100J is versatile and can be used in various applications across different industries, including:
- Automotive: Qualified to AEC-Q100 standard, suitable for automotive electronics.
- Industrial: Used in industrial control systems, motor drives, and other industrial automation.
- Consumer Electronics: Found in devices such as computers, computer networks, and digital signal processors.
- Power Management: Useful in power supply systems and energy-efficient designs.
- Robotics: Applicable in robotics and collaborative robots (cobots) for precise control and data handling.
Q & A
- What is the primary function of the 74LVC594APW-Q100J?
The primary function is to act as an 8-bit serial-in/serial or parallel-out shift register with a storage register.
- What is the supply voltage range for this device?
The supply voltage range is from 1.2 V to 3.6 V.
- What type of package does the 74LVC594APW-Q100J come in?
The device comes in a 16-TSSOP (TSSOP16, SOT403-1) package.
- What is the maximum operating frequency of this shift register?
The maximum operating frequency is 180 MHz.
- Does the 74LVC594APW-Q100J support mixed voltage environments?
Yes, it can be driven from either 3.3 V or 5 V devices.
- What is the purpose of the IOFF circuitry?
The IOFF circuitry disables the output to prevent backflow current when the device is powered down.
- What are the ESD protection levels for this device?
The device has HBM ESD protection exceeding 2000 V and CDM ESD protection exceeding 1000 V.
- What are the operating temperature ranges for the 74LVC594APW-Q100J?
The operating temperature ranges are from -40°C to +125°C.
- Is the 74LVC594APW-Q100J suitable for automotive applications?
Yes, it is qualified to the AEC-Q100 standard, making it suitable for automotive electronics.
- What is the significance of Schmitt-trigger action at the inputs?
Schmitt-trigger action makes the circuit tolerant of slower input rise and fall times.
- Can the 74LVC594APW-Q100J be cascaded?
Yes, it can be cascaded using its serial input (DS) and serial output (Q7S) pins.
