Overview
The 74LVC138APW-Q100J is a 3-to-8 line decoder/demultiplexer integrated circuit produced by Nexperia USA Inc. This device decodes three binary weighted address inputs (A0, A1, and A2) to eight mutually exclusive outputs (Y0 to Y7). It features three enable inputs (E1, E2, and E3), allowing for easy parallel expansion and use as an eight-output demultiplexer. The 74LVC138APW-Q100J is designed for use in mixed 3.3 V and 5 V environments and is suitable for various applications, including automotive and industrial sectors, due to its AEC-Q100 qualification.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC138APW-Q100J |
| Supply Voltage (VCC) | 1.2 V to 3.6 V |
| Logic Switching Levels | CMOS/LVTTL |
| Output Drive Capability | ± 24 mA |
| Propagation Delay (tpd) | 2.7 ns |
| Operating Temperature | -40 °C to +125 °C |

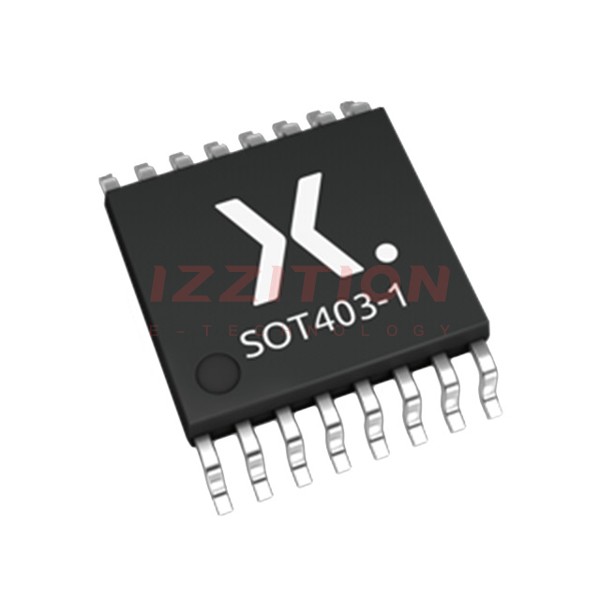

| Package Type | TSSOP16 (SOT403-1) |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Decodes three binary weighted address inputs to eight mutually exclusive outputs.
- Three enable inputs (E1, E2, and E3) for easy parallel expansion and demultiplexing capability.
- Schmitt-trigger action at all inputs for tolerance of slower input rise and fall times.
- Overvoltage tolerant inputs up to 5.5 V.
- Low power consumption with CMOS technology.
- Direct interface with TTL levels.
- Ideal for memory chip select decoding and other decoding/demultiplexing applications.
- Output drive capability suitable for 50 Ω transmission lines at 125 °C.
Applications
The 74LVC138APW-Q100J is widely used in various industries, including:
- Automotive: Due to its AEC-Q100 qualification, it is suitable for automotive applications requiring robust and reliable performance.
- Industrial: Used in industrial control systems, automation, and other applications requiring decoding and demultiplexing functions.
- Consumer Electronics: Found in consumer devices that require mixed voltage level translation and decoding functions.
- Computing and Power Systems: Used in memory chip select decoding and other computing applications.
Q & A
- What is the primary function of the 74LVC138APW-Q100J?
The primary function is to decode three binary weighted address inputs to eight mutually exclusive outputs. - What is the supply voltage range for the 74LVC138APW-Q100J?
The supply voltage range is from 1.2 V to 3.6 V. - What are the operating temperature ranges for this IC?
The operating temperature ranges from -40 °C to +125 °C. - What package type is the 74LVC138APW-Q100J available in?
The IC is available in a TSSOP16 (SOT403-1) package. - Does the 74LVC138APW-Q100J have ESD protection?
Yes, it has ESD protection exceeding 2000 V for HBM and 1000 V for CDM. - Can the 74LVC138APW-Q100J be used in mixed voltage environments?
Yes, it can be used in mixed 3.3 V and 5 V environments. - What are the key features of the enable inputs on the 74LVC138APW-Q100J?
The three enable inputs (E1, E2, and E3) allow for easy parallel expansion and use as a demultiplexer. - Is the 74LVC138APW-Q100J suitable for automotive applications?
Yes, it is AEC-Q100 qualified, making it suitable for automotive applications. - What is the propagation delay of the 74LVC138APW-Q100J?
The propagation delay is 2.7 ns. - Does the 74LVC138APW-Q100J have Schmitt-trigger action at the inputs?
Yes, it has Schmitt-trigger action at all inputs.
