Overview
The 74LVC07AD-Q100J is a hex buffer with open-drain outputs, manufactured by Nexperia USA Inc. This device is designed to operate in mixed 3.3 V and 5 V environments, making it an ideal choice for applications requiring voltage translation. The 74LVC07AD-Q100J features Schmitt-trigger action at all inputs, which enhances the circuit's tolerance to slower input rise and fall times. This component is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), ensuring its suitability for automotive applications.
Key Specifications
Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Rth(j-c) (K/W) | Package name |
---|---|---|---|---|---|---|---|---|---|---|
74LVC07AD | 1.65 - 5.5 | CMOS/LVTTL | 32 | 175 | 6 | low | -40 to +125 | 111 | 70 | SO14 |
Key Features
- Inputs can be driven from either 3.3 V or 5 V devices, enabling use in mixed voltage environments.
- Schmitt-trigger action at all inputs for tolerance of slower input rise and fall times.
- 5 V tolerant inputs and outputs (open-drain) for interfacing with 5 V logic.
- Wide supply voltage range from 1.2 V to 5.5 V.
- CMOS low power consumption.
- Direct interface with TTL levels.
- Overvoltage tolerant inputs up to 5.5 V.
- Complies with JEDEC standards: JESD8-7A, JESD8-5A, JESD8-C/JESD36.
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V), CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V).
- AEC-Q100 (Grade 1) qualified for automotive applications.
Applications
The 74LVC07AD-Q100J is suitable for a wide range of applications, including:
- Automotive systems, due to its AEC-Q100 qualification.
- Mixed voltage environments where translation between 3.3 V and 5 V logic is required.
- Industrial and consumer electronics where low power consumption and high reliability are essential.
- Computing and power management systems that require direct interface with TTL levels.
Q & A
- What is the primary function of the 74LVC07AD-Q100J?
The 74LVC07AD-Q100J is a hex buffer with open-drain outputs, designed for voltage translation and buffering in mixed 3.3 V and 5 V environments.
- What is the supply voltage range of the 74LVC07AD-Q100J?
The supply voltage range is from 1.2 V to 5.5 V.
- Does the 74LVC07AD-Q100J support Schmitt-trigger inputs?
- What is the output drive capability of the 74LVC07AD-Q100J?
The output drive capability is up to 32 mA.
- Is the 74LVC07AD-Q100J suitable for automotive applications?
- What are the temperature operating ranges for the 74LVC07AD-Q100J?
The device operates from -40 °C to +85 °C and from -40 °C to +125 °C.
- Does the 74LVC07AD-Q100J have ESD protection?
- What package types are available for the 74LVC07AD-Q100J?

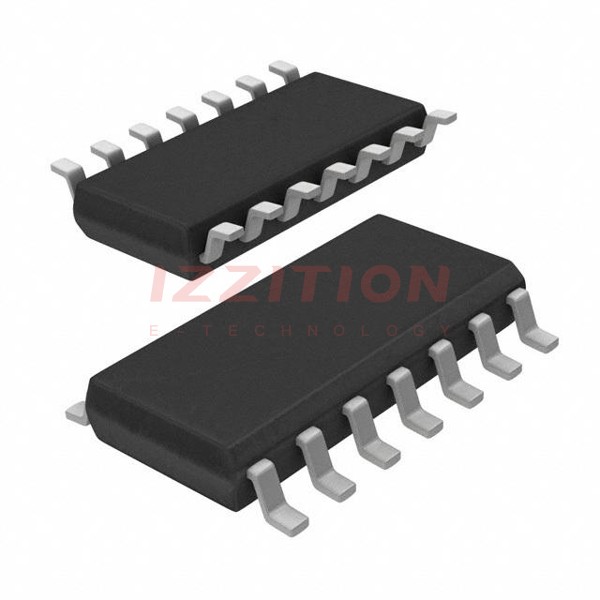

The device is available in SO14 (SOT108-1) packages.
- Is the 74LVC07AD-Q100J compliant with JEDEC standards?
- What is the maximum frequency of operation for the 74LVC07AD-Q100J?
The maximum frequency of operation is up to 175 MHz.
