Overview
The 74HC7541PW-Q100J is an 8-bit buffer/line driver integrated circuit produced by Nexperia USA Inc. This device features Schmitt-trigger inputs and 3-state outputs, making it highly versatile for various electronic applications. It is part of the 74HC series and is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), ensuring its reliability in automotive and other demanding environments.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage (VCC) | 2.0 to 6.0 | V |
| Operating Temperature | -40°C to +125°C | °C |
| Logic Type | Buffer, Non-Inverting | |
| Input Type | Schmitt Trigger | |
| Output Type | Push-Pull | |
| Output Current (High/Low) | ±7.8 mA | mA |
| Number of Bits per Element | 8 | |

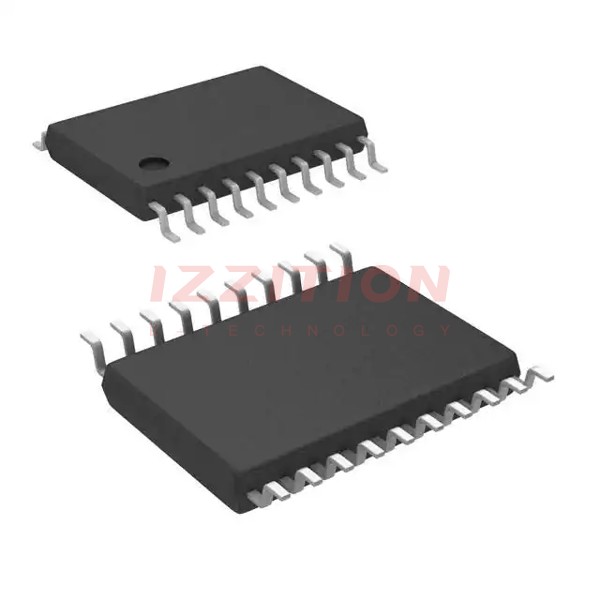

| Package/Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Mounting Type | Surface Mount | |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Unlimited input rise and fall times
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V)
- Non-inverting outputs
- Input levels: CMOS level for 74HC7541 and TTL level for 74HCT7541-Q100
- Two output enables (OE1 and OE2)
Applications
The 74HC7541PW-Q100J is suitable for a wide range of applications, including:
- Automotive systems, qualified to AEC-Q100 (Grade 1)
- Industrial control systems
- Consumer electronics
- Mobile and wearable devices
- Power and computing systems
Q & A
- What is the supply voltage range of the 74HC7541PW-Q100J?
The supply voltage range is from 2.0 V to 6.0 V.
- What type of inputs does the 74HC7541PW-Q100J have?
The device features Schmitt-trigger inputs.
- What is the operating temperature range of the 74HC7541PW-Q100J?
The operating temperature range is from -40°C to +125°C.
- What is the output current capability of the 74HC7541PW-Q100J?
The output current capability is ±7.8 mA.
- Does the 74HC7541PW-Q100J have ESD protection?
Yes, it has ESD protection: HBM exceeds 2000 V and CDM exceeds 1000 V.
- What package type is the 74HC7541PW-Q100J available in?
The device is available in a 20-TSSOP package.
- Is the 74HC7541PW-Q100J suitable for automotive applications?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1).
- What are the logic levels for the 74HC7541PW-Q100J?
The input levels are CMOS for the 74HC7541 and TTL for the 74HCT7541-Q100.
- Does the 74HC7541PW-Q100J have latch-up protection?
Yes, the latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
- What are the key standards the 74HC7541PW-Q100J complies with?
The device complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
