Overview

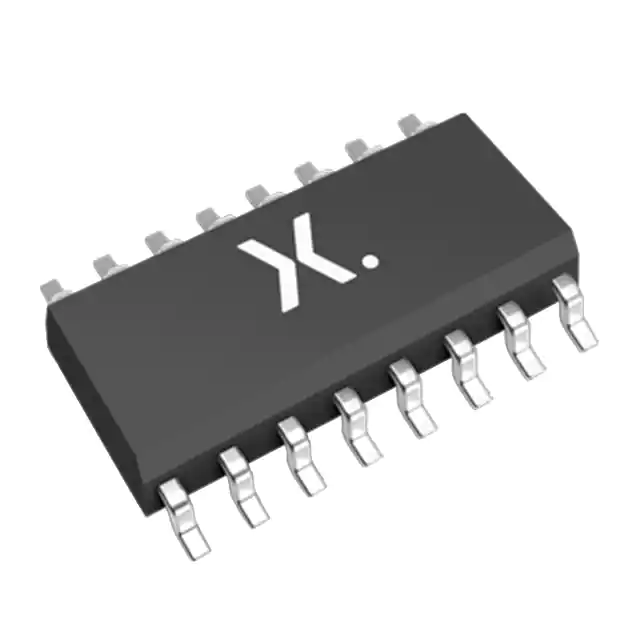

The 74HC597D-Q100J is an 8-bit shift register with input flip-flops, manufactured by Nexperia USA Inc. This integrated circuit is part of the 74HC and 74HCT family, known for their high noise immunity and low power dissipation. The device features an 8-bit storage register and a parallel-in, serial-out 8-bit shift register, both with positive edge-triggered clocks. It also includes direct load and clear inputs, making it versatile for various digital circuit applications.
Key Specifications
| Type Number | VCC (V) | Logic Switching Levels | Output Drive Capability (mA) | tpd (ns) | fmax (MHz) | Number of Bits | Package | Operating Temperature (°C) |
|---|---|---|---|---|---|---|---|---|
| 74HC597D-Q100J | 2.0 - 6.0 | CMOS | ± 5.2 | 16 | 108 | 8 | 16-SOIC (0.154", 3.90mm Width) | -40 ~ 125 |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V.
- Low Power Dissipation: CMOS technology ensures low power consumption.
- High Noise Immunity: Provides robust performance in noisy environments.
- Input Levels: Compatible with CMOS logic levels.
- 8-bit Parallel Storage Register Inputs: Allows for parallel data loading.
- Direct Load and Clear Inputs: Enables direct overriding of the shift register.
- ESD Protection: Compliant with ANSI/ESDA/JEDEC JS-001 class 2 (exceeds 2000 V) and ANSI/ESDA/JEDEC JS-002 class C3 (exceeds 1000 V).
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
- Compliance with JEDEC Standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
Applications
The 74HC597D-Q100J is suitable for a wide range of applications across various industries, including:
- Automotive: AEC-Q100 qualified, making it reliable for automotive systems.
- Industrial: Used in industrial control systems and automation.
- Consumer Electronics: Found in consumer devices requiring digital data processing.
- Computing and Data Storage: Used in data storage and transfer applications.
- Mobile and Wearables: Suitable for mobile and wearable devices due to its low power consumption.
Q & A
- Q: What is the operating voltage range of the 74HC597D-Q100J?
A: The operating voltage range is from 2.0 V to 6.0 V.
- Q: What type of logic levels does the 74HC597D-Q100J support?
A: It supports CMOS logic levels.
- Q: What is the maximum operating temperature of the 74HC597D-Q100J?
A: The maximum operating temperature is 125°C.
- Q: Does the 74HC597D-Q100J have ESD protection?
A: Yes, it complies with ANSI/ESDA/JEDEC JS-001 class 2 (exceeds 2000 V) and ANSI/ESDA/JEDEC JS-002 class C3 (exceeds 1000 V).
- Q: What is the package type of the 74HC597D-Q100J?
A: It is packaged in a 16-SOIC (0.154", 3.90mm Width).
- Q: Is the 74HC597D-Q100J RoHS compliant?
A: Yes, it is lead-free and RoHS compliant.
- Q: What is the function of the direct load and clear inputs on the 74HC597D-Q100J?
A: These inputs allow for direct overriding of the shift register, enabling immediate loading or clearing of the register.
- Q: What are the typical applications of the 74HC597D-Q100J?
A: It is used in automotive, industrial, consumer electronics, computing, and mobile and wearable devices.
- Q: Does the 74HC597D-Q100J have latch-up protection?
A: Yes, it exceeds 100 mA per JESD 78 Class II Level B.
- Q: Is the 74HC597D-Q100J compatible with JEDEC standards?
A: Yes, it complies with JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
