Overview

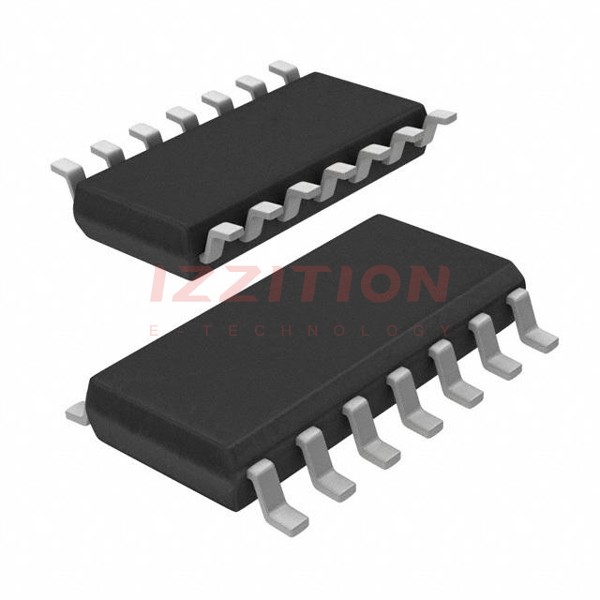

The 74HC107D-Q100J, produced by Nexperia USA Inc., is a dual negative-edge triggered JK flip-flop. This component is part of the 74HC and 74HCT series, known for their high-speed Si-gate CMOS technology. It features individual J and K inputs, a clock (CP) input, and a reset (R) input, along with complementary Q and Q outputs. The reset is an asynchronous active LOW input, operating independently of the clock input. This device is designed to be pin-compatible with low power Schottky TTL (LSTTL) and is suitable for a wide range of applications, including automotive, industrial, and consumer electronics.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|---|
| 74HC107D-Q100J | 2.0 - 6.0 | CMOS | ± 5.2 | 16 | 78 | low | -40~125 | SO14 (SOT108-1) |
| 74HC107PW-Q100J | 2.0 - 6.0 | CMOS | ± 5.2 | 16 | 78 | low | -40~125 | TSSOP14 (SOT402-1) |
| 74HCT107D-Q100J | 4.5 - 5.5 | TTL | ± 4 | 16 | 73 | low | -40~125 | SO14 (SOT108-1) |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V for the 74HC107 and 4.5 V to 5.5 V for the 74HCT107.
- Low Power Dissipation: CMOS technology ensures low power consumption.
- High Noise Immunity: Enhanced noise immunity due to CMOS and TTL logic levels.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B.
- ESD Protection: Complies with ANSI/ESDA/JEDEC JS-001 class 2 (HBM) and JS-002 class C3 (CDM), exceeding 2000 V and 1000 V respectively.
- Temperature Range: Specified from -40 °C to +125 °C.
- Package Options: Available in SO14 (SOT108-1) and TSSOP14 (SOT402-1) packages.
Applications
The 74HC107D-Q100J is versatile and can be used in various applications across different industries, including:
- Automotive: Suitable for automotive systems due to its AEC-Q100 qualification and wide temperature range.
- Industrial: Used in industrial control systems, automation, and other high-reliability applications.
- Consumer Electronics: Found in consumer devices requiring reliable and low-power logic functions.
- Computing and Power Systems: Utilized in computing and power management systems where high-speed and low-power logic is essential.
Q & A
- What is the primary function of the 74HC107D-Q100J?
The 74HC107D-Q100J is a dual negative-edge triggered JK flip-flop with individual J and K inputs, clock (CP) and reset (R) inputs, and complementary Q and Q outputs.
- What are the operating voltage ranges for the 74HC107 and 74HCT107?
The 74HC107 operates from 2.0 V to 6.0 V, while the 74HCT107 operates from 4.5 V to 5.5 V.
- What are the logic switching levels for the 74HC107 and 74HCT107?
The 74HC107 uses CMOS logic levels, and the 74HCT107 uses TTL logic levels.
- What is the maximum clock frequency for the 74HC107D-Q100J?
The maximum clock frequency is 78 MHz.
- What is the temperature range for the 74HC107D-Q100J?
The device is specified to operate from -40 °C to +125 °C.
- What packages are available for the 74HC107D-Q100J?
It is available in SO14 (SOT108-1) and TSSOP14 (SOT402-1) packages.
- Does the 74HC107D-Q100J have ESD protection?
Yes, it complies with ANSI/ESDA/JEDEC JS-001 class 2 (HBM) and JS-002 class C3 (CDM), exceeding 2000 V and 1000 V respectively.
- Is the 74HC107D-Q100J suitable for automotive applications?
Yes, it is AEC-Q100 qualified, making it suitable for automotive systems.
- What is the output drive capability of the 74HC107D-Q100J?
The output drive capability is ± 5.2 mA.
- How does the reset input function on the 74HC107D-Q100J?
The reset is an asynchronous active LOW input and operates independently of the clock input.
