Overview
The 74AUP1G18GW,125 is a low-power 1-of-2 demultiplexer produced by Nexperia USA Inc. This device is part of the Advanced Ultra Low Power (AUP) CMOS logic family, designed for low power consumption and extended battery life in various applications. It buffers the data on input A and directs it to either output 1Y or 2Y, based on the state of the select input (S). The unused output assumes a high-impedance OFF-state, and the device features Schmitt-trigger action at all inputs, making it tolerant of slower input rise and fall times.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | Power dissipation considerations | Tamb (°C) | Package name |
|---|---|---|---|---|---|---|---|
| 74AUP1G18GW | 0.8 - 3.6 | CMOS | 1.9 / -1.9 | 3.2 | Ultra low | -40 to +125 | TSSOP6 |
Key Features
- Low-power 1-of-2 demultiplexer with 3-state deselected output
- Supply voltage range from 0.8V to 3.6V
- Ultra-low static and dynamic power consumption
- Schmitt-trigger action at all inputs for tolerance to slower input rise and fall times
- Output drive capability of ±1.9 mA
- Propagation delay of 3.2 ns
- Operating temperature range from -40°C to +125°C

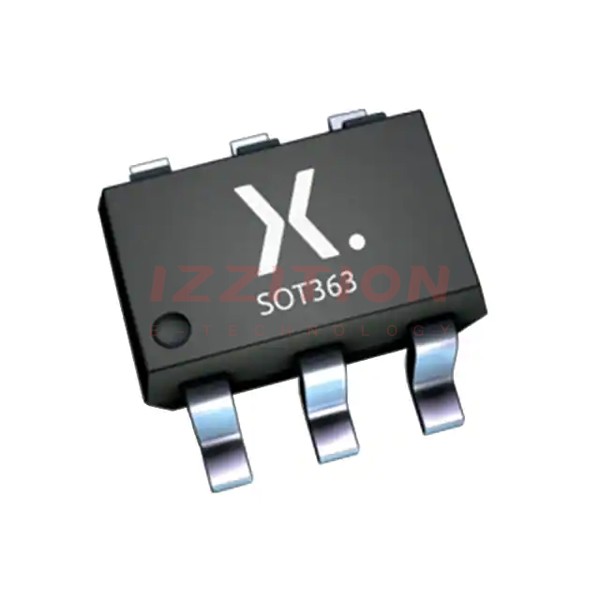

- Available in TSSOP6 package
Applications
The 74AUP1G18GW,125 is suitable for a wide range of applications, including:
- Automotive electronics, particularly in systems requiring low power consumption and high reliability
- Industrial control systems where energy efficiency and robust performance are critical
- Portable and battery-powered devices, such as mobile phones, wearables, and consumer electronics
- Computing and networking equipment where low power consumption is essential
Q & A
- What is the primary function of the 74AUP1G18GW,125?
The primary function is to act as a 1-of-2 demultiplexer, directing input data to one of two outputs based on the select input.
- What is the supply voltage range for this device?
The supply voltage range is from 0.8V to 3.6V.
- What are the key benefits of using the 74AUP1G18GW,125?
The key benefits include ultra-low power consumption, high reliability, and tolerance to slower input rise and fall times due to Schmitt-trigger action.
- What is the propagation delay of the 74AUP1G18GW,125?
The propagation delay is 3.2 ns.
- What package options are available for this device?
The device is available in a TSSOP6 package.
- What is the operating temperature range for this device?
The operating temperature range is from -40°C to +125°C.
- Is the 74AUP1G18GW,125 suitable for automotive applications?
- What are some common applications for the 74AUP1G18GW,125?
- Does the 74AUP1G18GW,125 have any special input characteristics?
- How does the 74AUP1G18GW,125 handle unused outputs?
The unused output assumes a high-impedance OFF-state.
