Overview

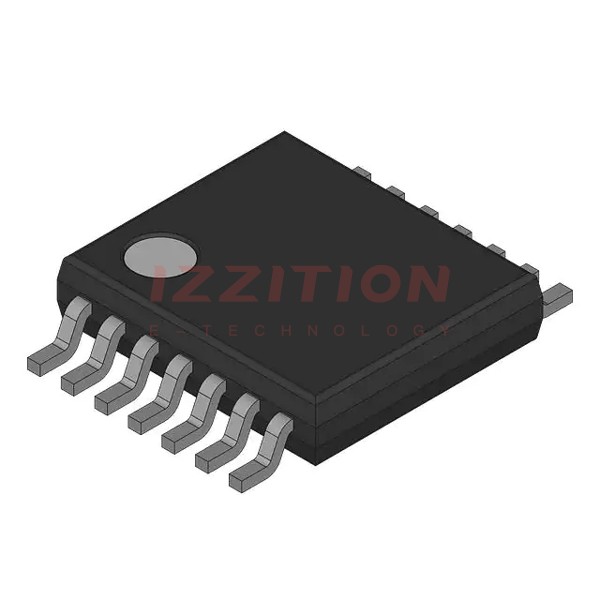

The 74ALVC32PW,118 is a quad 2-input OR gate integrated circuit produced by Nexperia USA Inc. This device is part of the 74ALVC series, known for its low-voltage operation and high-speed performance. The 74ALVC32PW features Schmitt trigger action on all inputs, making it tolerant of slow rise and fall times. It operates within a wide supply voltage range of 1.65 V to 3.6 V, making it versatile for various applications. The device is packaged in a 14-pin TSSOP (Thin Shrink Small Outline Package) and is fully specified for partial power-down applications using IOFF circuitry.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74ALVC32PW | 1.65 - 3.6 | TTL | ± 24 | 2.0 | 150 | 4 | low | -40~85 | 138 | 6.9 | 64 | TSSOP14 |
Key Features
- Quad 2-input OR gate with Schmitt trigger action on all inputs, tolerant of slow rise and fall times.
- Wide supply voltage range from 1.65 V to 3.6 V.
- CMOS low power dissipation.
- Overvoltage tolerant inputs up to 5.5 V.
- Direct interface with TTL levels.
- IOFF circuitry provides partial power-down mode operation.
- Latch-up performance exceeds 250 mA per JESD78 Class II.A.
- High speed with 2.0 ns propagation delay and 150 MHz maximum frequency.
- High noise immunity and balanced propagation delays.
- ESD protection exceeds JESD 22 standards.
- Suitable for battery-operated devices due to ultra-low power dissipation.
Applications
The 74ALVC32PW is versatile and can be used in a variety of applications across different industries, including:
- Automotive systems: For logic functions in automotive electronics.
- Industrial control systems: For high-speed and low-power logic operations.
- Mobile and consumer electronics: Suitable for battery-operated devices due to low power consumption.
- Computing and power management: For high-speed logic functions and partial power-down capabilities.
- Wearables and IoT devices: Due to its small package size and low power dissipation.
Q & A
- What is the supply voltage range of the 74ALVC32PW?
The supply voltage range is from 1.65 V to 3.6 V.
- What is the propagation delay of the 74ALVC32PW?
The propagation delay is 2.0 ns.
- What is the maximum frequency of operation for the 74ALVC32PW?
The maximum frequency is 150 MHz.
- What type of package does the 74ALVC32PW come in?
The device is packaged in a 14-pin TSSOP (Thin Shrink Small Outline Package).
- Is the 74ALVC32PW RoHS compliant?
Yes, it is compliant with Directive 2011/65/EU (RoHS 2 amended) without exemptions.
- What is the operating temperature range of the 74ALVC32PW?
The operating temperature range is -40°C to +85°C.
- Does the 74ALVC32PW have ESD protection?
Yes, it exceeds JESD 22 standards for ESD protection.
- What is the output drive capability of the 74ALVC32PW?
The output drive capability is ±24 mA.
- Is the 74ALVC32PW suitable for battery-operated devices?
Yes, due to its ultra-low power dissipation.
- Does the 74ALVC32PW support partial power-down mode?
Yes, it supports partial power-down mode using IOFF circuitry.
