Overview

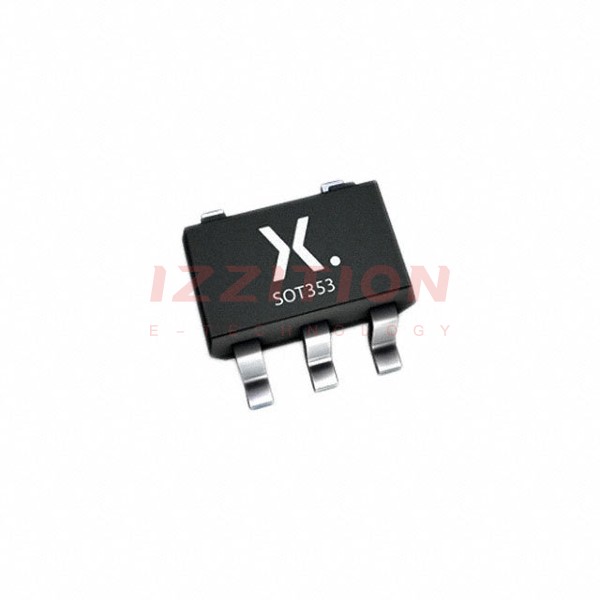

The 74AHCT1G08GW-Q100 is a single 2-input AND gate integrated circuit produced by Nexperia USA Inc. This component is designed to operate in a wide range of applications, particularly in mixed voltage environments due to its overvoltage tolerant inputs. It is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1), making it suitable for use in automotive applications. The device features a compact 5-TSSOP package and supports a wide supply voltage range from 2.0 V to 5.5 V.
Key Specifications
| Parameter | Conditions | Min | Typ | Max |
|---|---|---|---|---|
| Supply Voltage (VCC) | 2.0 V | 5.5 V | ||
| Input Voltage (VI) | 0 V | 5.5 V | ||
| Output Voltage (VO) | 0 V | VCC | ||
| Ambient Temperature (Tamb) | -40 °C | +125 °C | ||
| Propagation Delay (tpd) | VCC = 3.0 V to 3.6 V, CL = 15 pF | 4.6 ns | 8.8 ns | 12.0 ns |
| Propagation Delay (tpd) | VCC = 4.5 V to 5.5 V, CL = 15 pF | 3.2 ns | 5.9 ns | 8.0 ns |
| Input Leakage Current (II) | VI = 5.5 V or GND; VCC = 0 V to 5.5 V | 2.0 μA | ||
| Supply Current (ICC) | VI = VCC or GND; IO = 0 A; VCC = 5.5 V | 40 μA | ||
| Input Capacitance (CI) | 10 pF |
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Overvoltage tolerant inputs up to 5.5 V, allowing use in mixed voltage environments
- Wide supply voltage range from 2.0 V to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance and balanced propagation delays
Applications
The 74AHCT1G08GW-Q100 is suitable for a variety of applications, including:
- Automotive systems due to its AEC-Q100 qualification
- Mixed voltage environments where input overvoltage tolerance is necessary
- General logic circuits requiring low power consumption and high noise immunity
- Industrial control systems where robust and reliable logic gates are essential
Q & A
- What is the 74AHCT1G08GW-Q100?
The 74AHCT1G08GW-Q100 is a single 2-input AND gate integrated circuit. - Who manufactures the 74AHCT1G08GW-Q100?
The component is manufactured by Nexperia USA Inc. - What is the package type of the 74AHCT1G08GW-Q100?
The component is packaged in a 5-TSSOP (Thin Shrink Small Outline Package). - What is the supply voltage range of the 74AHCT1G08GW-Q100?
The supply voltage range is from 2.0 V to 5.5 V. - Is the 74AHCT1G08GW-Q100 suitable for automotive applications?
Yes, it is qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1). - What is the propagation delay of the 74AHCT1G08GW-Q100?
The propagation delay varies depending on the supply voltage and load capacitance, but it is typically around 3.2 ns to 8.0 ns for VCC = 4.5 V to 5.5 V and CL = 15 pF. - Does the 74AHCT1G08GW-Q100 have overvoltage tolerant inputs?
Yes, the inputs are overvoltage tolerant up to 5.5 V. - What is the input leakage current of the 74AHCT1G08GW-Q100?
The input leakage current is typically up to 2.0 μA. - What is the supply current of the 74AHCT1G08GW-Q100?
The supply current is typically up to 40 μA at VCC = 5.5 V. - What are the key benefits of using the 74AHCT1G08GW-Q100?
The key benefits include high noise immunity, CMOS low power dissipation, and symmetrical output impedance.
