Overview

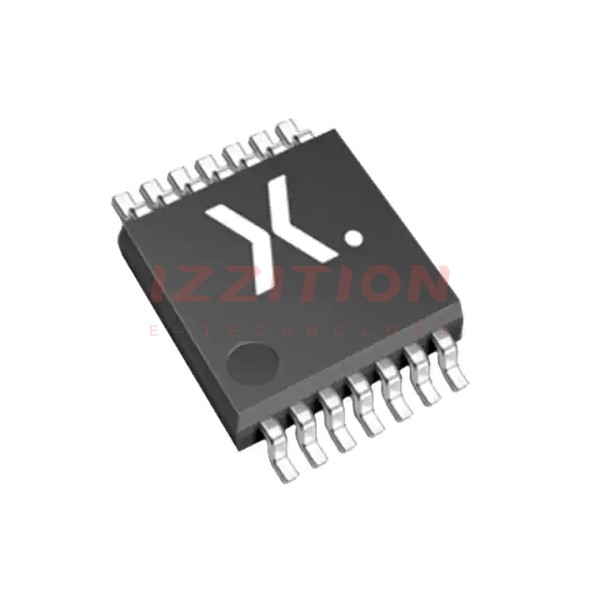

The 74AHCT04PW-Q100J is a high-speed Si-gate CMOS inverter IC produced by Nexperia USA Inc. This device is part of the 74AHCT series, which is known for its compatibility with Low-power Schottky TTL (LSTTL) and its high-speed operation. The IC features six independent inverter gates, each with a single input and a single output, making it versatile for various digital logic applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Number of Inverters | 6 | - |
| Package Type | TSSOP-14 | - |
| Operating Temperature Range | -40 to 125 | °C |
| Supply Voltage Range | 4.5 to 5.5 | V |
| Propagation Delay (Typical) | 5.5 | ns |
| Input Voltage Range | 0 to Vcc | V |
| Output Voltage Range | 0 to Vcc | V |
| Power Dissipation (Typical) | 0.5 | mW |
Key Features
- High-speed Si-gate CMOS technology for fast switching times.
- Pin compatible with Low-power Schottky TTL (LSTTL).
- Six independent inverter gates, each with a single input and a single output.
- Wide operating temperature range from -40°C to 125°C.
- Low power consumption, making it suitable for battery-powered devices.
- TSSOP-14 package for compact and efficient board design.
Applications
- Digital logic circuits and systems.
- Signal inversion and buffering in high-speed digital systems.
- Microcontroller and microprocessor interfaces.
- Automotive and industrial control systems.
- Consumer electronics requiring high-speed logic operations.
Q & A
- What is the package type of the 74AHCT04PW-Q100J?
The package type is TSSOP-14.
- How many inverter gates does the 74AHCT04PW-Q100J have?
The IC has six independent inverter gates.
- What is the operating temperature range of the 74AHCT04PW-Q100J?
The operating temperature range is from -40°C to 125°C.
- What is the typical propagation delay of the 74AHCT04PW-Q100J?
The typical propagation delay is 5.5 ns.
- Is the 74AHCT04PW-Q100J compatible with Low-power Schottky TTL (LSTTL)?
Yes, it is pin compatible with LSTTL.
- What is the supply voltage range for the 74AHCT04PW-Q100J?
The supply voltage range is from 4.5 V to 5.5 V.
- What are some common applications of the 74AHCT04PW-Q100J?
Common applications include digital logic circuits, signal inversion, microcontroller interfaces, and automotive control systems.
- What is the power dissipation of the 74AHCT04PW-Q100J?
The typical power dissipation is 0.5 mW.
- Is the 74AHCT04PW-Q100J suitable for battery-powered devices?
Yes, due to its low power consumption.
- Where can I find detailed specifications for the 74AHCT04PW-Q100J?
Detailed specifications can be found on the datasheet available from sources like Mouser, Digi-Key, and the official Nexperia website.
