Overview

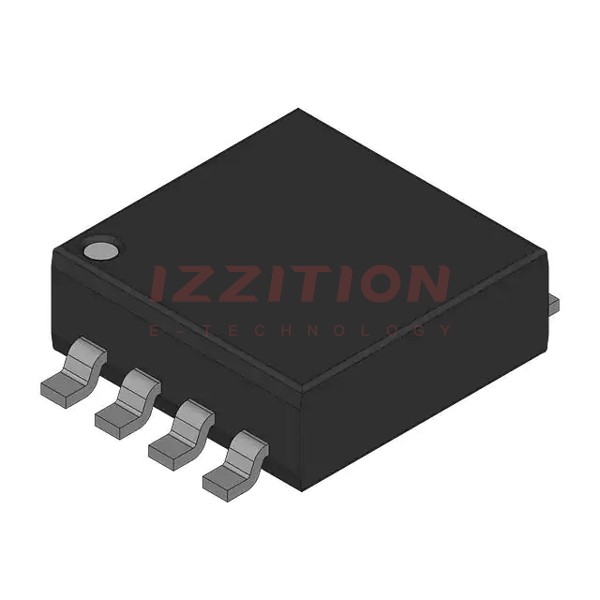

The 74AHC2G08DP-Q100,125 is a dual 2-input AND gate integrated circuit produced by Nexperia USA Inc. This component is part of the AHC (Advanced High-speed CMOS) logic family and is designed to operate in a wide range of applications, including automotive, industrial, and consumer electronics. The device is known for its high noise immunity, low power dissipation, and overvoltage tolerant inputs, making it versatile for use in mixed voltage environments.
Key Specifications
| Parameter | Value | Description |
|---|---|---|
| Operating Temperature | -40°C to +125°C | Temperature range over which the device operates |
| Supply Voltage (VCC) | 2.0 to 5.5 V | Voltage range for the power supply |
| Logic Switching Levels | CMOS | Input and output logic levels |
| Output Drive Capability | ± 8 mA | Maximum current the output can drive |
| Propagation Delay (tpd) | 3.2 ns | Time for the signal to propagate through the gate |
| Maximum Frequency (fmax) | 60 MHz | Maximum frequency at which the device can operate |
| Package Type | TSSOP8 (SOT505-2) | Type of package the IC is housed in |
| ESD Protection | HBM: >2000 V, CDM: >1000 V | Electrostatic discharge protection levels |
Key Features
- Symmetrical Output Impedance: Ensures balanced output signals.
- Balanced Propagation Delays: Consistent delay times for both inputs.
- Wide Supply Voltage Range: Operates from 2.0 to 5.5 V.
- Overvoltage Tolerant Inputs: Inputs can handle voltages up to 5.5 V, making it suitable for mixed voltage environments.
- High Noise Immunity: Resistant to noise and interference.
- Low Power Dissipation: CMOS technology reduces power consumption.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level A.
- ESD Protection: High levels of electrostatic discharge protection (HBM >2000 V, CDM >1000 V).
Applications
The 74AHC2G08DP-Q100,125 is suitable for a variety of applications across different industries, including:
- Automotive: Used in automotive systems due to its AEC-Q100 qualification.
- Industrial: Employed in industrial control systems and automation.
- Consumer Electronics: Found in mobile, computing, and consumer devices.
- Power and Computing: Used in power management and computing systems.
- Wearables and Mobile Devices: Suitable for use in wearable technology and mobile devices due to its low power consumption and high noise immunity.
Q & A
- What is the operating temperature range of the 74AHC2G08DP-Q100,125?
The operating temperature range is from -40°C to +125°C.
- What is the supply voltage range for this IC?
The supply voltage range is from 2.0 to 5.5 V.
- What type of logic switching levels does the 74AHC2G08DP-Q100,125 use?
The device uses CMOS logic switching levels.
- What is the propagation delay of the 74AHC2G08DP-Q100,125?
The propagation delay is 3.2 ns.
- What is the maximum frequency at which the 74AHC2G08DP-Q100,125 can operate?
The maximum frequency is 60 MHz.
- What type of package is the 74AHC2G08DP-Q100,125 housed in?
The IC is housed in a TSSOP8 (SOT505-2) package.
- Does the 74AHC2G08DP-Q100,125 have ESD protection?
Yes, it has high levels of ESD protection (HBM >2000 V, CDM >1000 V).
- Is the 74AHC2G08DP-Q100,125 suitable for automotive applications?
Yes, it is AEC-Q100 qualified, making it suitable for automotive applications.
- What are the key features of the 74AHC2G08DP-Q100,125?
Key features include symmetrical output impedance, balanced propagation delays, wide supply voltage range, overvoltage tolerant inputs, high noise immunity, and low power dissipation.
- Where can I find more detailed information about the 74AHC2G08DP-Q100,125?
More detailed information can be found in the full data sheet available from Nexperia's website or through local sales offices.
