Nexperia USA Inc. 74ABT16245BDGG,518

Manufacturer No:
74ABT16245BDGG,518
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

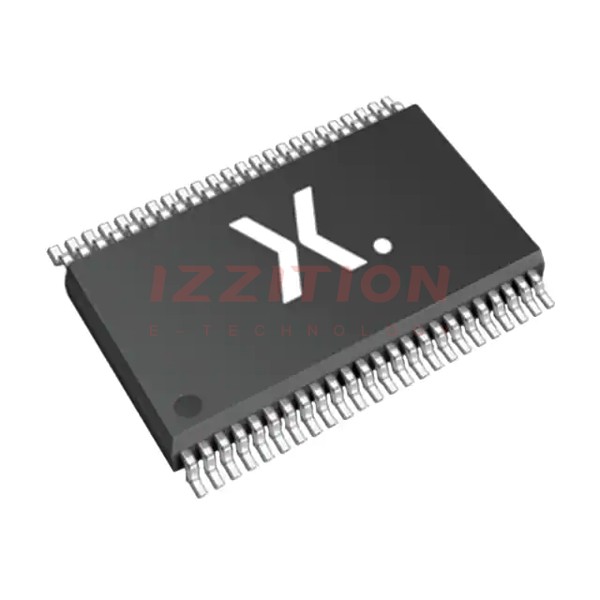

IC TXRX NON-INVERT 5.5V 48TSSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 74ABT16245BDGG,518 from Nexperia USA Inc. is a 16-bit non-inverting bus transceiver with 3-state outputs. This integrated circuit is designed to facilitate bidirectional data transfer between two buses. It can be used as two 8-bit transceivers or as a single 16-bit transceiver, making it versatile for various applications. The device features output enables and direction control inputs, allowing for flexible operation in different system configurations.

Key Specifications

Parameter Description
Logic Type Transceiver, Non-Inverting
Number of Elements 2
Number of Bits per Element 8
Output Type 3-State
Supply Voltage Range 4.5 V to 5.5 V
Operating Temperature -40°C to 85°C
Package / Case 48-TSSOP (Thin Shrink Small Outline Package)
Output Current Capability +64 mA and -32 mA
Propagation Delay 1.0 ns to 4.0 ns (depending on conditions)
ESD Protection HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

Key Features

  • BiCMOS high speed and output drive
  • Direct interface with TTL levels
  • 16-bit bidirectional bus interface
  • Multiple VCC and GND pins to minimize switching noise
  • Power-up 3-state and live insertion/extraction permitted
  • IOFF circuitry for partial power-down mode operation
  • Latch-up performance exceeds 500 mA per JESD 78 Class II Level B
  • ROHS3 Compliant and REACH Unaffected

Applications

The 74ABT16245BDGG,518 is widely used in various digital systems that require bidirectional data transfer. These include:

  • Microprocessors and computer systems
  • Computer networks and communication systems
  • Digital signal processors and frequency counters
  • Other applications requiring high-speed, low-power logic operations

Q & A

  1. What is the primary function of the 74ABT16245BDGG,518?

    The primary function is to act as a 16-bit non-inverting bus transceiver with 3-state outputs, facilitating bidirectional data transfer between two buses.

  2. What is the supply voltage range for this device?

    The supply voltage range is from 4.5 V to 5.5 V.

  3. What is the operating temperature range?

    The operating temperature range is from -40°C to 85°C.

  4. What type of package does this device come in?

    The device comes in a 48-TSSOP (Thin Shrink Small Outline Package).

  5. Does the device support partial power-down mode?
  6. What is the output current capability of the device?

    The output current capability is +64 mA and -32 mA.

  7. Is the device ESD protected?
  8. Is the device ROHS compliant?
  9. What are some common applications of this device?
  10. Can the device be used in live insertion/extraction scenarios?

Product Attributes

Logic Type:Transceiver, Non-Inverting
Number of Elements:2
Number of Bits per Element:8
Input Type:-
Output Type:3-State
Current - Output High, Low:32mA, 64mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package:48-TSSOP
0 Remaining View Similar

In Stock

-
105

Please send RFQ , we will respond immediately.

Same Series
74ABT16245BDGG,518
74ABT16245BDGG,518
IC TXRX NON-INVERT 5.5V 48TSSOP

Similar Products

Part Number 74ABT16245BDGG,518 74ABT16245BDGG,118 74ABT16245BDGG,512
Manufacturer Nexperia USA Inc. Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Active Obsolete
Logic Type Transceiver, Non-Inverting Transceiver, Non-Inverting Transceiver, Non-Inverting
Number of Elements 2 2 2
Number of Bits per Element 8 8 8
Input Type - - -
Output Type 3-State 3-State 3-State
Current - Output High, Low 32mA, 64mA 32mA, 64mA 32mA, 64mA
Voltage - Supply 4.5V ~ 5.5V 4.5V ~ 5.5V 4.5V ~ 5.5V
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 48-TFSOP (0.240", 6.10mm Width) 48-TFSOP (0.240", 6.10mm Width) 48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package 48-TSSOP 48-TSSOP 48-TSSOP
