Overview

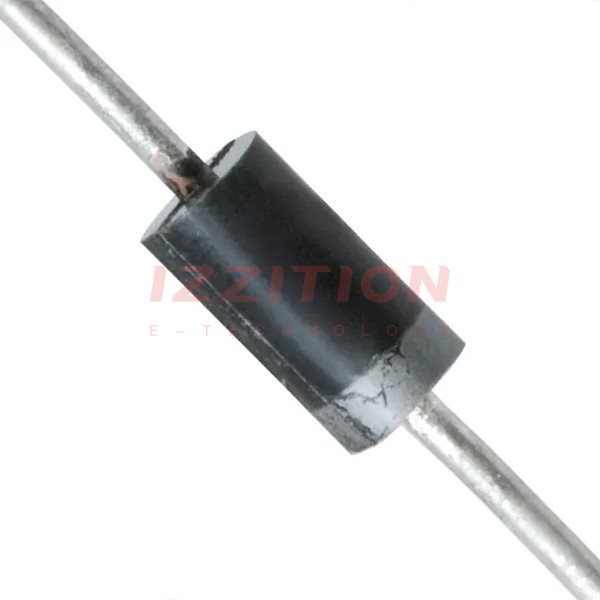

The MUR160-TP, manufactured by Micro Commercial Co, is a high-performance rectifier diode designed for various power management and switching applications. This diode is part of the MUR160 series, known for its fast recovery characteristics and high efficiency. It is particularly suited for use in power supplies, motor control circuits, and other high-frequency switching applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Repetitive Reverse Voltage (Vrrm) | 600 | V |
| Average Rectified Current (Io) | 1 | A |
| Forward Voltage (Vf) @ If | 1.25 | V @ 1A |
| Reverse Recovery Time (trr) | 50-75 | ns |
| Forward Surge Current (Ifsm) | 35 | A |
| Operating Junction Temperature | -65 to 175 | °C |
| Package Type | DO-41 | |
| Mounting Type | Through Hole | |
| RoHS Compliance | Yes |
Key Features
- Fast Recovery Time: The MUR160-TP features a fast recovery time of 50-75 ns, making it suitable for high-frequency switching applications.
- High Efficiency: This diode is designed for high efficiency with a low forward voltage drop of 1.25V at 1A.
- High Surge Current Capability: It can handle a forward surge current of up to 35A, ensuring robust performance under transient conditions.
- Wide Operating Temperature Range: The diode operates over a wide junction temperature range of -65°C to 175°C, making it versatile for various environmental conditions.
- RoHS Compliance: The MUR160-TP is RoHS compliant, ensuring it meets environmental regulations.
Applications
- Power Supplies: Suitable for use in switching power supplies due to its fast recovery and high efficiency characteristics.
- Motor Control Circuits: Used in motor control circuits for efficient and reliable operation.
- High-Frequency Switching: Ideal for applications requiring high-frequency switching, such as inverter circuits and DC-DC converters.
- General Purpose Rectification: Can be used in various general-purpose rectification applications where high efficiency and fast recovery are necessary.
Q & A
- What is the repetitive reverse voltage (Vrrm) of the MUR160-TP?
The repetitive reverse voltage (Vrrm) of the MUR160-TP is 600V.
- What is the average rectified current (Io) of the MUR160-TP?
The average rectified current (Io) of the MUR160-TP is 1A.
- What is the forward voltage (Vf) of the MUR160-TP at 1A?
The forward voltage (Vf) of the MUR160-TP at 1A is 1.25V.
- What is the reverse recovery time (trr) of the MUR160-TP?
The reverse recovery time (trr) of the MUR160-TP is between 50-75 ns.
- What is the maximum forward surge current (Ifsm) of the MUR160-TP?
The maximum forward surge current (Ifsm) of the MUR160-TP is 35A.
- What is the operating junction temperature range of the MUR160-TP?
The operating junction temperature range of the MUR160-TP is -65°C to 175°C.
- What type of package does the MUR160-TP come in?
The MUR160-TP comes in a DO-41 package.
- Is the MUR160-TP RoHS compliant?
Yes, the MUR160-TP is RoHS compliant.
- In what types of applications is the MUR160-TP commonly used?
The MUR160-TP is commonly used in power supplies, motor control circuits, high-frequency switching applications, and general-purpose rectification.
- Why is the MUR160-TP preferred for high-frequency switching applications?
The MUR160-TP is preferred for high-frequency switching applications due to its fast recovery time and high efficiency.
