Overview

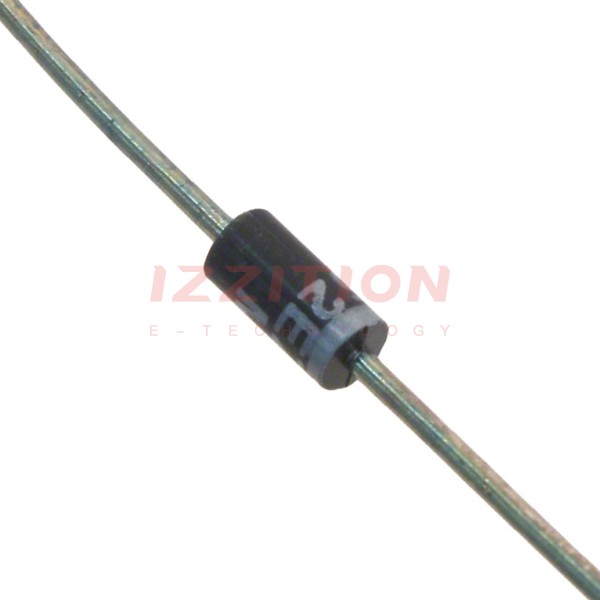

The 1N4733P/TR8 is a Zener diode produced by Microchip Technology. This component is designed for discrete voltage and current regulation in various electronic circuits. It features a nominal Zener voltage of 5.1V and a power dissipation of 1 watt, making it suitable for applications requiring stable voltage reference and regulation.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Nominal Zener Voltage | 5.1 | V |
| Zener Voltage Tolerance | ±10% | - |
| Maximum Power Dissipation | 1 | W |
| Maximum Current | 1000 | mA |
| Internal Resistance | 7 | Ω |
| Package Type | DO-204AL (DO-41) | - |
| Pinning | Through Hole, 2-Pin | - |
Key Features
- Stable Voltage Reference: Provides a stable Zener voltage of 5.1V with a tolerance of ±10%.
- High Power Dissipation: Capable of handling up to 1 watt of power dissipation.
- Low Internal Resistance: Features an internal resistance of 7 ohms.
- Compact Packaging: Available in the DO-204AL (DO-41) through-hole package, making it suitable for a variety of applications.
- Reliability: Designed for high reliability and stability in voltage regulation applications.
Applications
- Voltage Regulation: Used in circuits requiring stable voltage references and regulation.
- Current Limiting: Can be used to limit current in various electronic circuits.
- Overvoltage Protection: Provides protection against overvoltage conditions in electronic systems.
- Signal Processing: Used in signal processing circuits to stabilize voltage levels.
- Power Supplies: Employed in power supply circuits to ensure stable output voltages.
Q & A
- What is the nominal Zener voltage of the 1N4733P/TR8?
The nominal Zener voltage is 5.1V.
- What is the tolerance of the Zener voltage for the 1N4733P/TR8?
The Zener voltage tolerance is ±10%.
- What is the maximum power dissipation of the 1N4733P/TR8?
The maximum power dissipation is 1 watt.
- What is the internal resistance of the 1N4733P/TR8?
The internal resistance is 7 ohms.
- In what package type is the 1N4733P/TR8 available?
The component is available in the DO-204AL (DO-41) through-hole package.
- What are some common applications of the 1N4733P/TR8?
Common applications include voltage regulation, current limiting, overvoltage protection, signal processing, and power supplies.
- How many pins does the 1N4733P/TR8 have?
The component has 2 pins.
- Is the 1N4733P/TR8 suitable for high-reliability applications?
Yes, it is designed for high reliability and stability in voltage regulation applications.
- What is the maximum current rating for the 1N4733P/TR8?
The maximum current rating is 1000 mA.
- Where can I find detailed specifications for the 1N4733P/TR8?
Detailed specifications can be found on the official Microchip Technology website or through distributors like Digi-Key and Mouser.
