Overview
The BZX84C3V3-7-F is a surface mount Zener diode from Diodes Incorporated, part of the BZX84C series. This component is designed to provide voltage regulation and is suitable for a wide range of applications, including consumer electronics, computing, communications, industrial, and automotive markets. The BZX84C series is known for its high-quality and reliability, making it a popular choice for automated assembly processes.
Key Specifications
| Attribute | Value |
|---|---|
| Power Dissipation | 350 mW |
| Forward (Drive) Current | 10 mA |
| Forward Voltage | 0.9 V |
| Reverse Current - Max | 5 µA |
| Working Voltage - Nom | 3.3 V |

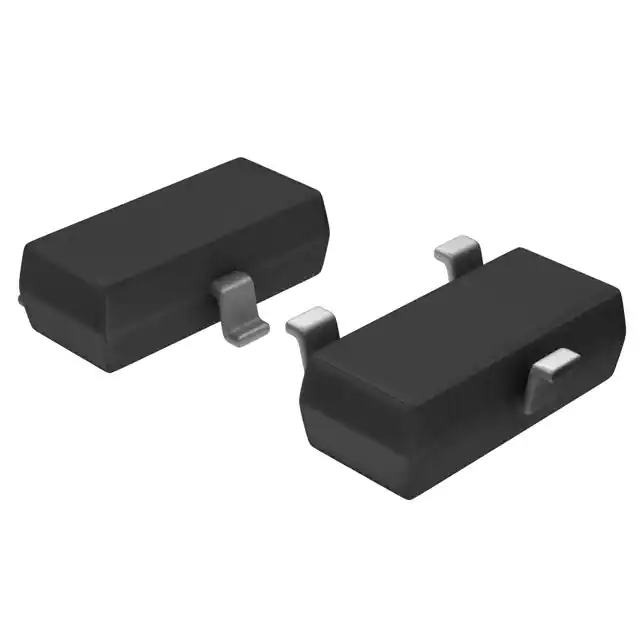

| Package Style | SOT-23 (SC-59, TO-236) |
| Mounting Method | Surface Mount |
Key Features
- High-quality, application-specific standard product
- Suitable for automated assembly processes
- Surface mount package (SOT-23) for compact design
- Voltage regulation with a nominal working voltage of 3.3 V
- Low forward voltage and low reverse current
- Wide range of applications including consumer electronics, computing, communications, industrial, and automotive markets
Applications
The BZX84C3V3-7-F is versatile and can be used in various applications such as:
- Consumer electronics
- Computing devices
- Communication systems
- Industrial equipment
- Automotive systems
Q & A
- What is the nominal working voltage of the BZX84C3V3-7-F?
The nominal working voltage is 3.3 V.
- What is the package style of the BZX84C3V3-7-F?
The package style is SOT-23 (SC-59, TO-236).
- What is the maximum forward current of the BZX84C3V3-7-F?
The maximum forward current is 10 mA.
- What is the power dissipation of the BZX84C3V3-7-F?
The power dissipation is 350 mW.
- What is the reverse current maximum of the BZX84C3V3-7-F?
The reverse current maximum is 5 µA.
- What mounting method is used for the BZX84C3V3-7-F?
The mounting method is surface mount.
- In which markets is the BZX84C series commonly used?
The BZX84C series is commonly used in consumer electronics, computing, communications, industrial, and automotive markets.
- Is the BZX84C3V3-7-F suitable for automated assembly processes?
Yes, it is suitable for automated assembly processes.
- What is the forward voltage of the BZX84C3V3-7-F?
The forward voltage is 0.9 V.
- Are there any product change notices (PCNs) related to the BZX84C3V3-7-F?
Yes, there have been PCNs issued by Diodes Incorporated regarding the end-of-life and manufacturing changes for this product.
