Overview

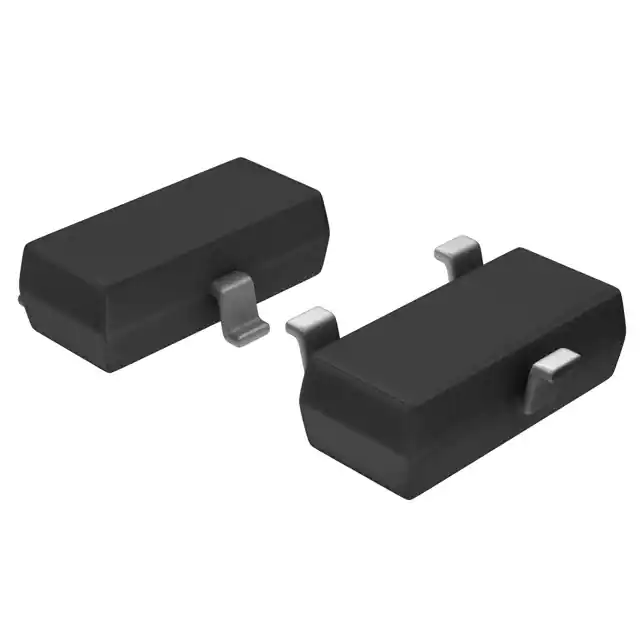

The BZX84C24-7-F-31 is a surface mount Zener diode manufactured by Diodes Incorporated. This component is part of the BZX84 series, known for its high reliability and stability in voltage regulation applications. The BZX84C24-7-F-31 is designed to provide a stable voltage reference and to protect electronic circuits from voltage spikes and surges.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (Vz) | 24V |
| Power Dissipation (Pd) | 350mW |
| Current (Iz) | 5mA (typical) |
| Temperature Range | -65°C to +150°C |
| Package | SOD-123 |
| Mounting Type | Surface Mount |
Key Features
- High reliability and stability in voltage regulation.
- Low leakage current.
- Compact SOD-123 package for space-saving designs.
- Wide operating temperature range from -65°C to +150°C.
- High power dissipation capability of up to 350mW.
Applications
The BZX84C24-7-F-31 Zener diode is suitable for various applications including voltage regulation, voltage clamping, and overvoltage protection in electronic circuits. It is commonly used in power supplies, audio equipment, and other electronic devices that require stable voltage references.
Q & A
- What is the voltage rating of the BZX84C24-7-F-31 Zener diode? The voltage rating is 24V.
- What is the maximum power dissipation of the BZX84C24-7-F-31? The maximum power dissipation is 350mW.
- What is the typical current rating for the BZX84C24-7-F-31? The typical current rating is 5mA.
- What is the operating temperature range of the BZX84C24-7-F-31? The operating temperature range is from -65°C to +150°C.
- What package type does the BZX84C24-7-F-31 come in? It comes in a SOD-123 package.
- What are common applications for the BZX84C24-7-F-31? Common applications include voltage regulation, voltage clamping, and overvoltage protection in electronic circuits.
- Who is the manufacturer of the BZX84C24-7-F-31? The manufacturer is Diodes Incorporated.
- Where can I find the datasheet for the BZX84C24-7-F-31? You can find the datasheet on websites such as Digi-Key, HKin.com, or directly from Diodes Incorporated's official website.
- What is the mounting type of the BZX84C24-7-F-31? It is a surface mount component.
- Is the BZX84C24-7-F-31 suitable for high-temperature environments? Yes, it is suitable for operating temperatures up to 150°C.
