Overview
The SSM3582ACPZ-RL, produced by Analog Devices Inc., is a high-efficiency, digital input stereo Class-D audio amplifier. This device is designed to operate from a single 4.5 V to 16 V supply, making it versatile for various audio applications. It features a proprietary, spread spectrum Σ-Δ modulation scheme that ensures state-of-the-art analog performance and reduces radiated emissions. The amplifier is capable of delivering 2 × 15 W rms continuously into 8 Ω and 4 Ω loads with less than 1% total harmonic distortion (THD), and it maintains excellent power efficiency across a wide range of impedances.
Key Specifications

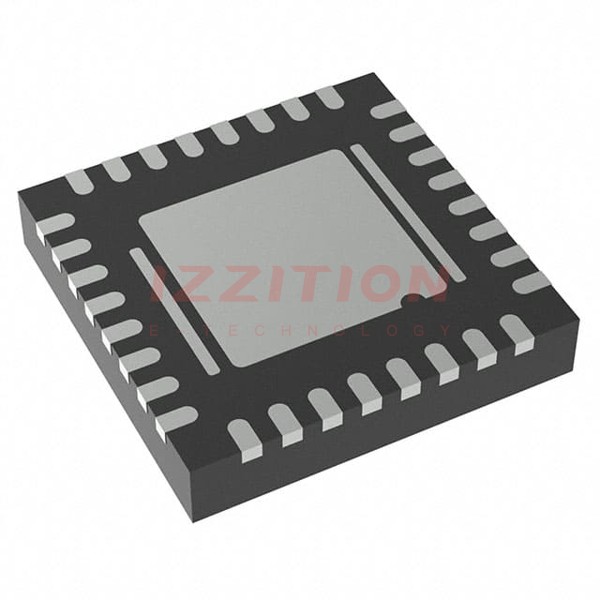

| Parameter | Value |
|---|---|
| Supply Voltage | 4.5 V to 16 V |
| Output Power | 2 × 15 W rms into 8 Ω and 4 Ω loads |
| Total Harmonic Distortion (THD) | < 1% at rated power |
| Signal-to-Noise Ratio (SNR) | > 106 dB |
| Efficiency | 93% into 8 Ω load, 90% into 4 Ω load |
| Temperature Range | −40°C to +85°C |
| Package Type | 40-Lead LFCSP (6 mm × 6 mm with thermal pad) |
| Audio Interface | Pulse Code Modulation (PCM) with I²S, left justified, and TDM support |
| Control Interface | I²C interface |
Key Features
- Proprietary, spread spectrum Σ-Δ modulation scheme for reduced radiated emissions and high analog performance.
- Optional ultralow electromagnetic interference (EMI) mode for reduced emissions above 100 MHz.
- Support for PCM audio serial port with I²S, left justified, and TDM protocols.
- I²C interface for device control with up to 16 individual addresses.
- Micropower shutdown mode and software power-down mode for low power consumption.
- Automatic power-down feature with pop/click-free mute and unmute transitions.
- Built-in thermal shutdown, output short-circuit protection, and early thermal warning with programmable gain limiting.
Applications
The SSM3582ACPZ-RL is suitable for a variety of audio applications, including home audio systems, automotive audio systems, and professional audio equipment. Its high efficiency, low noise, and robust protection features make it an ideal choice for systems requiring high-quality audio output with minimal power consumption.
Q & A
- What is the operating voltage range of the SSM3582ACPZ-RL?
The SSM3582ACPZ-RL operates from a single 4.5 V to 16 V supply. - What is the maximum output power of the SSM3582ACPZ-RL?
The device can deliver up to 2 × 15 W rms continuously into 8 Ω and 4 Ω loads. - What is the total harmonic distortion (THD) of the SSM3582ACPZ-RL?
The THD is less than 1% at rated power. - What is the signal-to-noise ratio (SNR) of the SSM3582ACPZ-RL?
The SNR is greater than 106 dB. - What is the efficiency of the SSM3582ACPZ-RL?
The efficiency is 93% into an 8 Ω load and 90% into a 4 Ω load. - What is the temperature range of the SSM3582ACPZ-RL?
The device operates over a temperature range of −40°C to +85°C. - What type of package does the SSM3582ACPZ-RL come in?
The device is available in a 40-Lead LFCSP (6 mm × 6 mm with thermal pad). - What audio interface protocols does the SSM3582ACPZ-RL support?
The device supports PCM audio serial port with I²S, left justified, and TDM protocols. - How is the device controlled?
The device is controlled through an I²C interface. - What protection features does the SSM3582ACPZ-RL have?
The device has built-in thermal shutdown, output short-circuit protection, and early thermal warning with programmable gain limiting.
