Overview
The SSM2380CBZ-REEL7 is a class D 2-channel (stereo) audio amplifier produced by Analog Devices Inc. This amplifier is designed to provide high efficiency and low distortion, making it suitable for a variety of audio applications. It is part of Analog Devices' portfolio of audio amplifiers, known for their reliability and performance.
Key Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 2 (Stereo) |
| Maximum Output Power | 3.2W x 2 @ 4 Ohm |

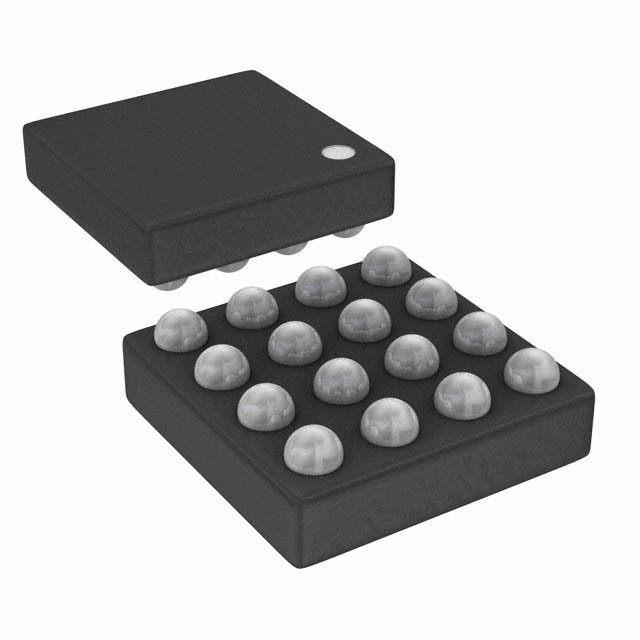

| Package Type | CBZ (Chip Scale Ball Grid Array) |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Range |
Key Features
- High efficiency class D amplifier
- Low distortion and noise
- Compact CBZ package
- Wide operating temperature range (-40°C to +85°C)
- Depop (pop and click suppression) feature
Applications
- Portable audio devices (e.g., MP3 players, smartphones)
- Home audio systems
- Automotive audio systems
- Consumer electronics (e.g., tablets, laptops)
Q & A
- What is the maximum output power of the SSM2380CBZ-REEL7?
The maximum output power is 3.2W x 2 @ 4 Ohm.
- How many channels does the SSM2380CBZ-REEL7 support?
It supports 2 channels (stereo).
- What is the package type of the SSM2380CBZ-REEL7?
The package type is CBZ (Chip Scale Ball Grid Array).
- What is the operating temperature range of the SSM2380CBZ-REEL7?
The operating temperature range is -40°C to +85°C.
- Does the SSM2380CBZ-REEL7 have a depop feature?
Yes, it features depop (pop and click suppression).
- What are some common applications for the SSM2380CBZ-REEL7?
Common applications include portable audio devices, home audio systems, automotive audio systems, and consumer electronics.
- What is the typical supply voltage range for the SSM2380CBZ-REEL7?
The typical supply voltage range is 4.5V to 5.5V.
- Is the SSM2380CBZ-REEL7 a class D amplifier?
Yes, it is a class D amplifier.
- What are the benefits of using a class D amplifier like the SSM2380CBZ-REEL7?
The benefits include high efficiency, low distortion, and compact size.
- Where can I find more detailed specifications for the SSM2380CBZ-REEL7?
You can find detailed specifications on the official Analog Devices website or through distributors like Digi-Key, Mouser, and Win-Source.
