STA515W13TR
  • Share:

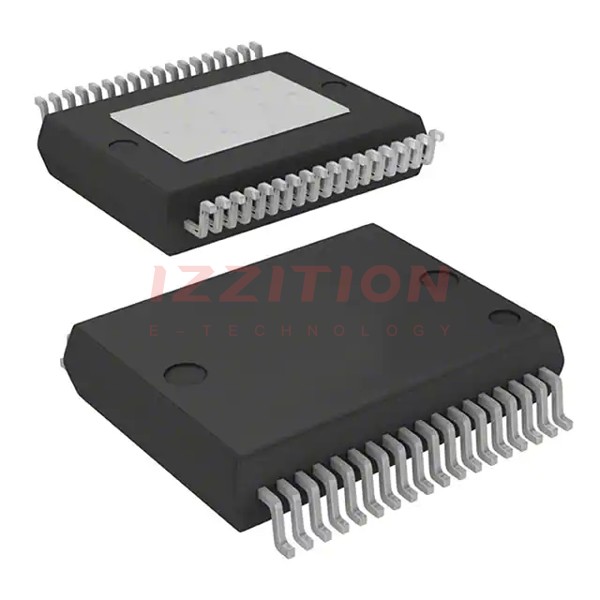

STMicroelectronics STA515W13TR

Manufacturer No:
STA515W13TR
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
IC AMP D QUAD 10W POWERSSO36
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STA515W13TR is a monolithic quad half-bridge stage in Multipower BCD Technology, designed by STMicroelectronics. This device is particularly suited as the output stage of a stereo all-digital high-efficiency amplifier. It can be configured as a dual bridge or reconfigured as a single bridge with double-current capability by connecting the CONFIG pin to the VDD pins. The STA515W13TR is capable of delivering significant power, such as 10 W x 4 channels into 4 Ω loads with 10% THD at VCC = 18 V in single-ended configuration, and up to 40 W into an 8 Ω load in single parallel BTL configuration at VCC = 26 V.

Key Specifications

ParameterValue
Voltage Rating40 V
Current Rating3 A
Output Power (Single-Ended)10 W x 4 channels into 4 Ω loads with 10% THD at VCC = 18 V
Output Power (BTL Configuration)20 W + 20 W into 8 Ω loads with 10% THD at VCC = 18 V
Output Power (Single Parallel BTL Configuration)40 W into 8 Ω load with 10% THD at VCC = 26 V
RdsON200 mΩ
Package36-pin PowerSSO with exposed pad down (EPD)
Operating Temperature Range-40°C to 150°C
RoHS ComplianceEcopack2

Key Features

  • Multipower BCD technology
  • Low input/output pulse width distortion
  • 200 mΩ RdsON complementary DMOS output stage
  • CMOS-compatible logic inputs
  • Thermal protection
  • Thermal warning output
  • Undervoltage protection
  • Short-circuit protection

Applications

The STA515W13TR is designed for use in high-efficiency audio amplifiers, particularly in stereo all-digital amplifier configurations. It is suitable for applications requiring high power output with low distortion, such as home audio systems, car audio systems, and professional audio equipment.

Q & A

  1. What is the voltage rating of the STA515W13TR?
    The voltage rating of the STA515W13TR is 40 V.
  2. What is the current rating of the STA515W13TR?
    The current rating of the STA515W13TR is 3 A.
  3. How can the STA515W13TR be configured?
    The STA515W13TR can be configured as a dual bridge or as a single bridge with double-current capability by connecting the CONFIG pin to the VDD pins.
  4. What is the output power in single-ended configuration?
    In single-ended configuration, the STA515W13TR can deliver 10 W x 4 channels into 4 Ω loads with 10% THD at VCC = 18 V.
  5. What is the output power in BTL configuration?
    In BTL configuration, the STA515W13TR can deliver 20 W + 20 W into 8 Ω loads with 10% THD at VCC = 18 V.
  6. What is the package type of the STA515W13TR?
    The STA515W13TR comes in a 36-pin PowerSSO package with exposed pad down (EPD).
  7. What are the key protection features of the STA515W13TR?
    The key protection features include thermal protection, thermal warning output, undervoltage protection, and short-circuit protection.
  8. Is the STA515W13TR RoHS compliant?
    Yes, the STA515W13TR is RoHS compliant with an Ecopack2 rating.
  9. What is the operating temperature range of the STA515W13TR?
    The operating temperature range of the STA515W13TR is -40°C to 150°C.
  10. What technology is used in the STA515W13TR?
    The STA515W13TR uses Multipower BCD technology.

Product Attributes

Type:Class D
Output Type:4-Channel (Quad)
Max Output Power x Channels @ Load:10W x 4 @ 4Ohm
Voltage - Supply:10V ~ 36V
Features:Short-Circuit and Thermal Protection
Mounting Type:Surface Mount
Operating Temperature:0°C ~ 70°C (TA)
Supplier Device Package:PowerSSO-36 EPD
Package / Case:36-PowerBFSOP (0.295", 7.50mm Width)
0 Remaining View Similar

In Stock

$2.69
318

Please send RFQ , we will respond immediately.
