MAX3485ESA+TG002
  • Share:

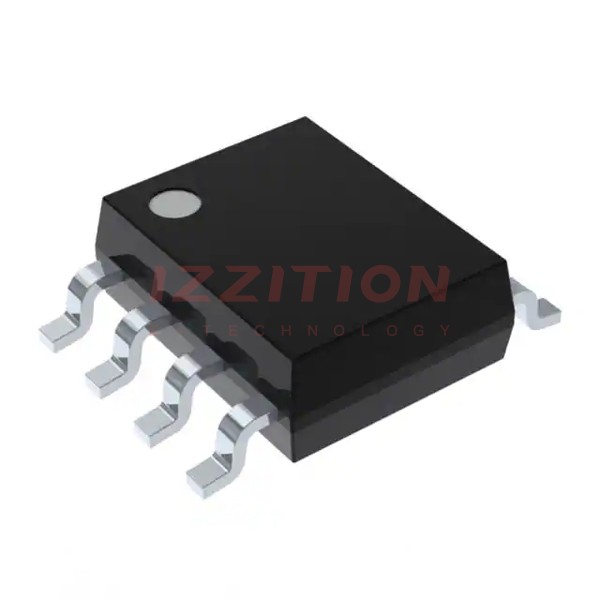

Analog Devices Inc./Maxim Integrated MAX3485ESA+TG002

Manufacturer No:
MAX3485ESA+TG002
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Bulk
Description:
INTEGRATED CIRCUIT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX3485ESA+TG002 is a low-power transceiver designed for RS-485 and RS-422 communication, manufactured by Analog Devices Inc./Maxim Integrated. This component operates from a single 3.3V supply and is part of the MAX3483 to MAX3491 family of transceivers. It is particularly suited for applications requiring high-speed data transmission and low power consumption.

Key Specifications

Parameter Value Notes
Guaranteed Data Rate 10 Mbps
Supply Voltage 3.0 to 3.6 V
Duplex Mode Half-Duplex
Slew-Rate Limited Driver No
Receiver Enable/Driver Enable Yes
Shutdown Current 2 nA
Pin Count 8
Operating Temperature Range -40°C to +85°C
Package Type SO (Small Outline)

Key Features

  • Operates from a single 3.3V supply—no charge pump required.
  • Interoperable with +5V logic.
  • 8ns max skew (for MAX3485 and MAX3490/MAX3491).
  • Low-current shutdown mode (2nA).
  • Drivers are short-circuit current-limited and protected by thermal shutdown circuitry.
  • Receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit.

Applications

  • Low-power RS-485/RS-422 transceivers.
  • Telecommunications.
  • Transceivers for EMI-sensitive applications.
  • Industrial-control local area networks.

Q & A

  1. What is the guaranteed data rate of the MAX3485ESA+TG002?

    The guaranteed data rate is up to 10 Mbps.

  2. What is the operating supply voltage range for the MAX3485ESA+TG002?

    The operating supply voltage range is 3.0 to 3.6 V.

  3. Does the MAX3485ESA+TG002 support full-duplex communication?

    No, it supports half-duplex communication.

  4. Is the driver of the MAX3485ESA+TG002 slew-rate limited?

    No, the driver is not slew-rate limited.

  5. What is the shutdown current of the MAX3485ESA+TG002?

    The shutdown current is 2 nA.

  6. What is the package type of the MAX3485ESA+TG002?

    The package type is SO (Small Outline).

  7. What is the operating temperature range of the MAX3485ESA+TG002?

    The operating temperature range is -40°C to +85°C.

  8. Does the MAX3485ESA+TG002 have thermal shutdown protection?
  9. What is the fail-safe feature of the receiver input in the MAX3485ESA+TG002?

    The receiver input has a fail-safe feature that guarantees a logic-high output if both inputs are open circuit.

  10. Is the MAX3485ESA+TG002 interoperable with +5V logic?
