Overview
The MAX19527EXE+ is an ultra-low-power, octal, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is optimized for low-power and high-dynamic performance, making it suitable for various applications including medical imaging, multichannel communications, and instrumentation. The MAX19527EXE+ operates from a single 1.8V power supply, consuming 440mW (55mW per channel), and features a high signal-to-noise ratio (SNR) of 69dBFS at a 5.3MHz input frequency.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Part Number | MAX19527EXE+ |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Architecture | Pipelined |
| Reference Type | External / Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Operating Temperature | -40°C ~ 85°C |

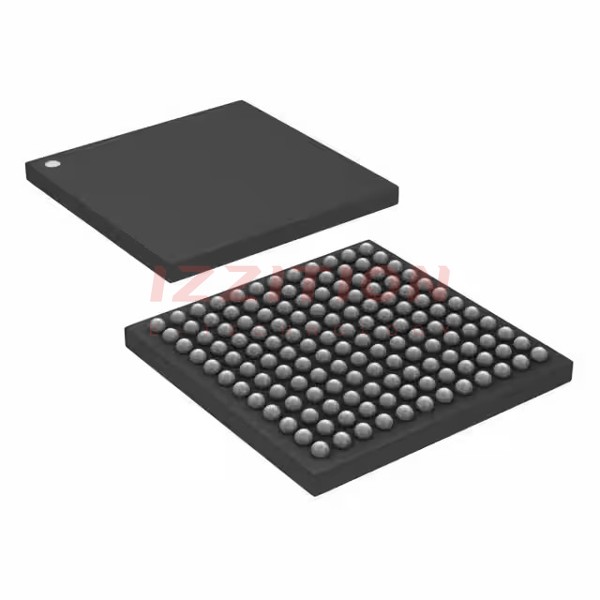

| Package / Case | 144-CTBGA (10x10) |
| Mounting Type | Surface Mount |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Key Features
- Ultra-Low-Power Operation: 55mW per channel at 50Msps
- Single 1.8V Power Supply
- Excellent Dynamic Performance: 69dBFS SNR at 5.3MHz, 140dBc/Hz Near-Carrier SNR, 84dBc SFDR at 5.3MHz, and 90dB Channel Isolation
- User-Programmable Adjustment and Feature Selection through an SPI Interface
- Serial LVDS Outputs with Programmable Current Drive and Internal Termination
- Programmable Power Management
- Internal or External Reference Operation
- Single-Ended or Differential Clock Input
- Programmable Output Data Format
- Built-In Output Data Test Patterns
- Small, 10mm x 10mm, 144-Lead CTBGA Package
- Evaluation Kit Available (MAX19527EVKIT+)
Applications
- Instrumentation
- Multichannel Communications
- Ultrasound and Medical Imaging
- ZIF GSM and TD-SCDMA Transceivers
Q & A
- What is the MAX19527EXE+? The MAX19527EXE+ is an ultra-low-power, octal, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated.
- What is the sampling rate of the MAX19527EXE+? The sampling rate is 50Msps.
- How many input channels does the MAX19527EXE+ have? It has 8 input channels.
- What type of data interface does the MAX19527EXE+ use? It uses serial LVDS outputs.
- What is the power supply voltage for the MAX19527EXE+? It operates from a single 1.7V to 1.9V power supply.
- What is the operating temperature range of the MAX19527EXE+? The operating temperature range is -40°C to 85°C.
- Is the MAX19527EXE+ RoHS compliant? Yes, it is ROHS3 compliant.
- What package type does the MAX19527EXE+ use? It uses a 144-CTBGA (10x10) package.
- What are some key applications of the MAX19527EXE+? Key applications include instrumentation, multichannel communications, ultrasound and medical imaging, and ZIF GSM and TD-SCDMA transceivers.
- Is an evaluation kit available for the MAX19527EXE+? Yes, the MAX19527EVKIT+ is available for evaluation purposes.
