MAX1338ETN+
  • Share:

Analog Devices Inc./Maxim Integrated MAX1338ETN+

Manufacturer No:
MAX1338ETN+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Description:
IC ADC 14BIT SAR 56TQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1338ETN+ is a 14-bit, 4-channel, software-programmable, multiranging, simultaneous-sampling analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed to offer high precision and flexibility, making it suitable for a variety of applications that require simultaneous sampling of multiple analog inputs.

The MAX1338 features four fully differential input channels, each with independent track-and-hold (T/H) circuitry, allowing for simultaneous sampling of all channels. The input ranges are software-programmable, offering options of ±10V, ±5V, ±2.5V, and ±1.25V, with fault tolerance up to ±17V. The device operates with a 14-bit parallel interface and supports both internal and external clock and reference options.

The MAX1338 is powered by a +5V supply for analog inputs and digital core, and a +2.7V to +5.25V supply for digital I/O lines. It includes power-saving modes such as standby and shutdown, which significantly reduce power consumption during idle periods.

Key Specifications

Parameter Description Value
Number of Bits Resolution of the ADC 14 bits
Number of Channels Number of input channels 4
Input Type Type of input channels Fully differential
Input Ranges Software-programmable input ranges ±10V, ±5V, ±2.5V, ±1.25V
Fault Tolerance Maximum voltage tolerance for inputs ±17V
Aperture Delay Delay of the track-and-hold circuits 16ns
Aperture-Delay Matching Matching between track-and-hold circuits 100ps
Sample Rate Maximum sample rate per channel 150ksps (600ksps for all four channels)
Supply Voltage (Analog) Voltage supply for analog inputs and digital core +5V
Supply Voltage (Digital I/O) Voltage supply for digital I/O lines +2.7V to +5.25V
Operating Temperature Temperature range for operation -40°C to +85°C

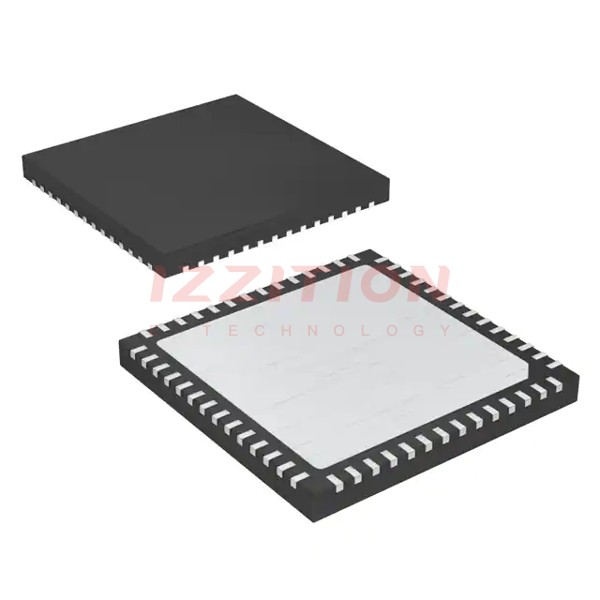

Package Type and dimensions of the package 56-pin thin QFN (8mm x 8mm x 0.8mm)

Key Features

  • Simultaneous sampling of four fully differential input channels with independent track-and-hold (T/H) circuitry.
  • Software-programmable input ranges: ±10V, ±5V, ±2.5V, and ±1.25V.
  • Fault tolerance up to ±17V on input channels.
  • 14-bit parallel interface for output data.
  • Internal clock and 2.5V internal reference, with options for external clock and reference.
  • Power-saving modes: standby and shutdown, reducing quiescent current to 4mA (typ) and sleep current to less than 10µA (typ), respectively.
  • Dynamic performance: SNR of 77dB, SINAD of 76dB, SFDR of 98dBc, and THD of -83dBc at 10kHz input.
  • DC performance: INL of ±2 LSB, DNL of ±1 LSB, offset error of ±4 LSB, and gain error of ±0.1% FSR.

Applications

  • Multiple-Channel Data Recorders
  • Vibration Analysis
  • Motor Control: 3-Phase Voltage, Current, and Power Measurement
  • Optical Communication Equipment

Q & A

  1. What is the resolution of the MAX1338 ADC?

    The MAX1338 ADC has a resolution of 14 bits.

  2. How many input channels does the MAX1338 have?

    The MAX1338 has four simultaneously sampled, fully differential input channels.

  3. What are the software-programmable input ranges for the MAX1338?

    The input ranges are ±10V, ±5V, ±2.5V, and ±1.25V.

  4. What is the fault tolerance of the input channels?

    The input channels have fault tolerance up to ±17V.

  5. What is the maximum sample rate per channel for the MAX1338?

    The maximum sample rate per channel is 150ksps (600ksps for all four channels).

  6. What are the power supply requirements for the MAX1338?

    The device operates from a +5V supply for analog inputs and digital core, and a +2.7V to +5.25V supply for digital I/O lines.

  7. What are the power-saving modes available in the MAX1338?

    The MAX1338 features standby and shutdown modes to reduce power consumption.

  8. What is the operating temperature range for the MAX1338?

    The device operates over the extended -40°C to +85°C temperature range.

  9. What is the package type and dimensions for the MAX1338?

    The MAX1338 is available in a 56-pin thin QFN package (8mm x 8mm x 0.8mm).

  10. What are some typical applications for the MAX1338?

    Typical applications include multiple-channel data recorders, vibration analysis, motor control, and optical communication equipment.

Product Attributes

Number of Bits:14
Sampling Rate (Per Second):150k
Number of Inputs:4
Input Type:Differential
Data Interface:Serial
Configuration:-
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External
Voltage - Supply, Analog:4.75V ~ 5.25V
Voltage - Supply, Digital:4.75V ~ 5.25V
Features:Simultaneous Sampling
Operating Temperature:-40°C ~ 85°C
Package / Case:56-WFQFN Exposed Pad
Supplier Device Package:56-TQFN (8x8)
Mounting Type:Surface Mount
