Overview

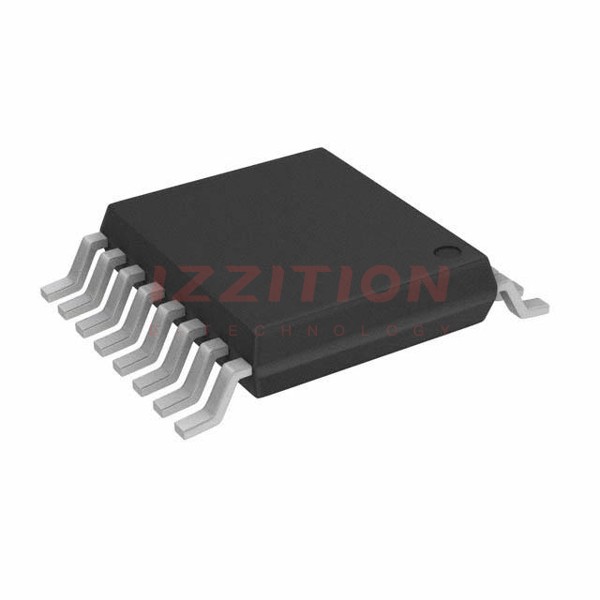

The MAX1253BEUE+T, produced by Analog Devices Inc./Maxim Integrated, is a stand-alone, 10-channel (8 external, 2 internal) 12-bit system monitor analog-to-digital converter (ADC). This device features an internal reference and a programmable single-ended/differential multiplexer that accepts voltage and remote-diode temperature-sensor inputs. It is designed for independent monitoring of input channels without the need for microprocessor interaction and can generate interrupts when user-defined limits are exceeded. The MAX1253BEUE+T is known for its low power consumption and compact 16-pin TSSOP package, making it ideal for multichannel system-monitoring applications, including hand-held and battery-powered devices.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Number of Channels | 10 channels (8 external, 2 internal) |
| Input Channel Type | Differential, Single Ended |
| Supply Voltage Type | Single |
| Supply Voltage Range | 2.7V to 3.6V |
| Sampling Rate | Up to 94 kS/s |
| Operating Temperature | -40°C to 85°C |
| Package/Case | 16-TSSOP (0.173", 4.40 mm) |
| Power Consumption (at 3V) | 5mW (1.7mA) at 94ksps, < 8µA at 50sps |
Key Features
- Stand-alone operation without microprocessor interaction
- Internal temperature sensor and VDD monitor
- Programmable single-ended/differential multiplexer
- Recursive data averaging for noise reduction
- Programmable wait intervals between conversion sequences
- AutoShutdown feature to reduce supply current
- Compact 16-pin TSSOP package
- Low power consumption suitable for battery-powered applications
Applications
The MAX1253BEUE+T is suitable for a variety of applications, including multichannel system monitoring, hand-held devices, and battery-powered equipment. Its low power consumption and compact design make it ideal for use in portable medical devices, industrial control systems, and other applications where precise and independent monitoring of multiple channels is required.
