Overview

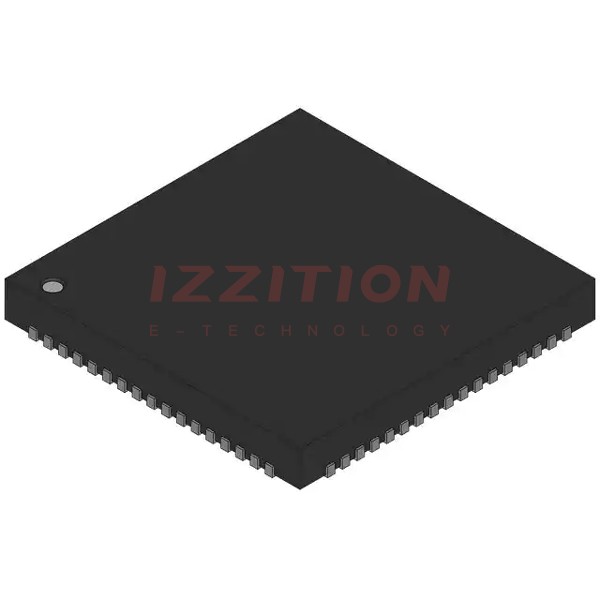

The MAX12527ETK is a dual 3.3V, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This component features fully differential wideband track-and-hold (T/H) inputs, making it suitable for a variety of high-speed data acquisition applications. The ADC operates at a sampling rate of up to 65 Msps, providing high-resolution conversion of analog signals to digital data.
Key Specifications
| Specification | Value |
|---|---|
| Number of Channels | 2 |
| Resolution | 12-bit |
| Supply Voltage | 3.3V |
| Sampling Rate | Up to 65 Msps |
| Full Power Bandwidth (FPBW) | 750 MHz |
| Integral Nonlinearity (INL) | 0.3 LSB |
| Gain Error | 0.5 %FSR |
| Height | 0.74 mm |
Key Features
- Fully differential wideband track-and-hold (T/H) inputs
- High-speed sampling rate of up to 65 Msps
- Low integral nonlinearity (INL) of 0.3 LSB
- Low gain error of 0.5 %FSR
- Compact package with a height of 0.74 mm
Applications
The MAX12527ETK is designed for various high-speed data acquisition applications, including:
- Wireless communication systems
- Radar and surveillance systems
- Medical imaging equipment
- High-speed data acquisition systems
- Industrial control and automation
Q & A
- What is the resolution of the MAX12527ETK ADC?
The MAX12527ETK has a resolution of 12 bits. - What is the maximum sampling rate of the MAX12527ETK?
The maximum sampling rate is up to 65 Msps. - What is the supply voltage for the MAX12527ETK?
The supply voltage is 3.3V. - What is the full power bandwidth (FPBW) of the MAX12527ETK?
The full power bandwidth is 750 MHz. - What is the integral nonlinearity (INL) of the MAX12527ETK?
The integral nonlinearity is 0.3 LSB. - What is the gain error of the MAX12527ETK?
The gain error is 0.5 %FSR. - How many channels does the MAX12527ETK have?
The MAX12527ETK has 2 channels. - What are some typical applications of the MAX12527ETK?
Typical applications include wireless communication systems, radar and surveillance systems, medical imaging equipment, high-speed data acquisition systems, and industrial control and automation. - What is the height of the MAX12527ETK package?
The height of the package is 0.74 mm. - Where can I find detailed specifications for the MAX12527ETK?
Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Mouser and Digi-Key.
