MAX1236EUA+TCHV
  • Share:

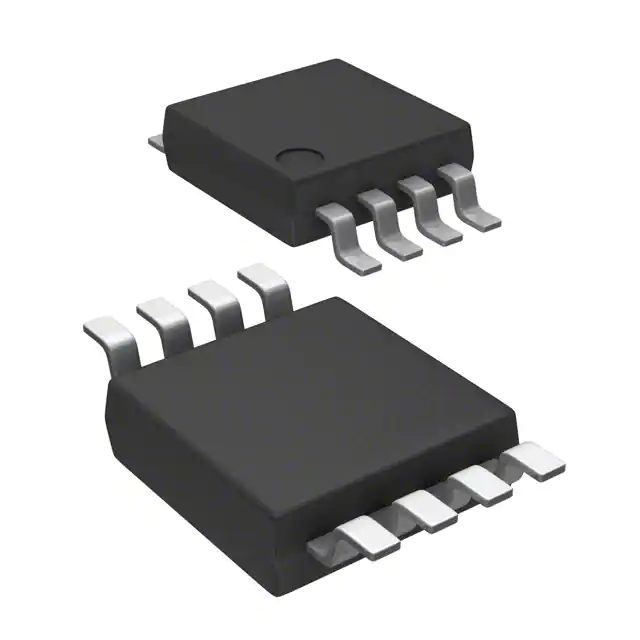

Analog Devices Inc./Maxim Integrated MAX1236EUA+TCHV

Manufacturer No:
MAX1236EUA+TCHV
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Description:
IC ADC 12BIT SAR 8UMAX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MAX1236EUA+TCHV is a high-performance, low-power, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device features a Successive Approximation Register (SAR) architecture, which ensures high accuracy and precision. It is designed with an I2C-compatible 2-wire serial interface, making it easy to integrate with various microcontrollers. The MAX1236EUA+TCHV is suitable for a wide range of applications due to its versatile input configurations and low power consumption.

Key Specifications

ParameterValue
Number of Bits12
Sampling Rate94.4 ksamples/s
Number of Inputs2, 4
Input TypeDifferential, Single-Ended
Data InterfaceI2C
ConfigurationS/H-ADC (1:1 ratio)
Number of A/D Converters1
ArchitectureSAR
Reference TypeInternal, External
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
Operating Temperature Range-40°C to 85°C

Key Features

  • High precision due to 12-bit resolution and SAR architecture
  • Flexible input configuration supporting differential and single-ended inputs
  • Low power consumption with AutoShutdown™ feature reducing supply current to less than 1µA at low throughput rates
  • I2C-compatible 2-wire serial interface for easy integration with microcontrollers
  • Selectable internal or external reference voltage
  • Operational in a wide temperature range from -40°C to 85°C

Applications

  • Data acquisition systems
  • Industrial control systems
  • Medical instruments
  • Portable devices
  • Robotics

Q & A

  1. What is the resolution of the MAX1236EUA+TCHV ADC?
    The MAX1236EUA+TCHV has a 12-bit resolution.
  2. What is the maximum sampling rate of the MAX1236EUA+TCHV?
    The maximum sampling rate is 94.4 ksamples per second.
  3. What types of input configurations are supported by the MAX1236EUA+TCHV?
    The device supports both differential and single-ended input configurations.
  4. What is the data interface used by the MAX1236EUA+TCHV?
    The device uses an I2C-compatible 2-wire serial interface.
  5. How does the AutoShutdown™ feature benefit the MAX1236EUA+TCHV?
    The AutoShutdown™ feature powers down the device between conversions, reducing supply current to less than 1µA at low throughput rates.
  6. What is the operating temperature range of the MAX1236EUA+TCHV?
    The device operates in a temperature range from -40°C to 85°C.
  7. Can the MAX1236EUA+TCHV use an external reference voltage?
    Yes, the device can be configured to use an external reference voltage from 1V to VDD.
  8. How many analog input channels does the MAX1236EUA+TCHV have?
    The device has 2 to 4 analog input channels.
  9. What is the architecture of the MAX1236EUA+TCHV ADC?
    The device uses a Successive Approximation Register (SAR) architecture.
  10. Is the MAX1236EUA+TCHV RoHS compliant?
    Yes, the device is RoHS compliant according to EU regulations 2011/65/EU and 2015/863.

Product Attributes

Number of Bits:12
Sampling Rate (Per Second):94.4k
Number of Inputs:2, 4
Input Type:Differential, Single Ended
Data Interface:I²C
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:SAR
Reference Type:External, Internal
Voltage - Supply, Analog:4.5V ~ 5.5V
Voltage - Supply, Digital:4.5V ~ 5.5V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:8-uMAX/uSOP
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
541

Please send RFQ , we will respond immediately.
