Overview

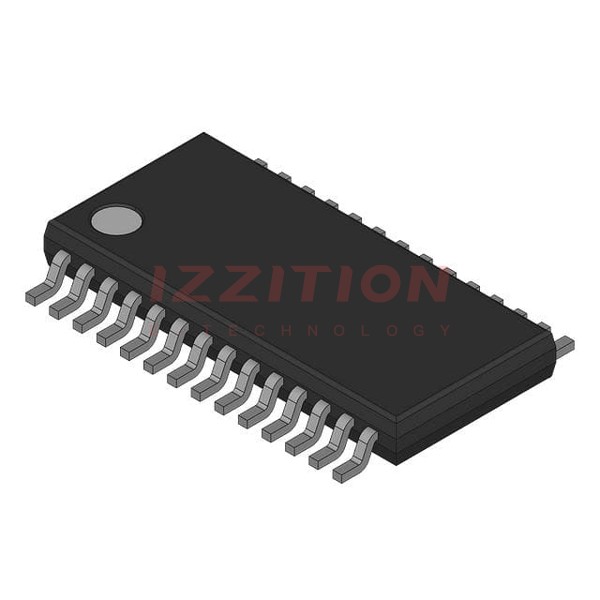

The MAX1157BCUI is a 14-bit, single-supply analog-to-digital converter (ADC) produced by Analog Devices Inc./Maxim Integrated. This device is designed for high-performance applications requiring precise analog-to-digital conversion. It operates on a single +4.75V to +5.25V analog supply voltage and features a wide range of analog input voltages, making it versatile for various use cases.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 14 bits |
| Analog Input Voltage Range | 0 to +10V (MAX1157), ±10V (MAX1159), 0 to +10V or ±5V |
| Analog Supply Voltage | +4.75V to +5.25V |
| Interface Type | Wide Parallel Interface |
| Sampling Rate | 135 kS/s |
| Operating Temperature | 0°C to 70°C |
| Package/Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Key Features
- Analog input voltage range of 0 to +10V, ±10V, or 0 to +10V, depending on the model variant
- Single +4.75V to +5.25V analog supply voltage
- 14-bit wide parallel interface for high-speed data transfer
- High sampling rate of 135 kS/s
- Compact package options including 8-TSSOP and 8-MSOP
Applications
The MAX1157BCUI is suitable for a variety of high-performance applications, including industrial control systems, medical devices, and data acquisition systems. Its high resolution and fast sampling rate make it ideal for applications requiring precise and rapid analog-to-digital conversion.
Q & A
- What is the resolution of the MAX1157BCUI? The MAX1157BCUI has a resolution of 14 bits.
- What are the available analog input voltage ranges for the MAX1157BCUI? The MAX1157BCUI accepts an analog input voltage range of 0 to +10V, while other variants accept ±10V or 0 to +10V.
- What is the operating supply voltage range for the MAX1157BCUI? The device operates on a single +4.75V to +5.25V analog supply voltage.
- What is the sampling rate of the MAX1157BCUI? The sampling rate is 135 kS/s.
- What types of interfaces does the MAX1157BCUI support? The MAX1157BCUI supports a wide parallel interface.
- What are the package options for the MAX1157BCUI? The device is available in 8-TSSOP and 8-MSOP packages.
- What is the operating temperature range for the MAX1157BCUI? The operating temperature range is 0°C to 70°C.
- What are some typical applications for the MAX1157BCUI? Typical applications include industrial control systems, medical devices, and data acquisition systems.
- Is the MAX1157BCUI suitable for high-speed data transfer? Yes, with its wide parallel interface and high sampling rate, it is suitable for high-speed data transfer.
- Where can I find detailed specifications for the MAX1157BCUI? Detailed specifications can be found in the datasheet available on the Analog Devices website or through distributors like Mouser and Digi-Key.
