Overview
The LTC6910-2ITS8#TRMPBF is a low noise, digitally programmable gain amplifier (PGA) from Analog Devices Inc. This component is part of the LTC6910 family, which is known for its ease of use and minimal PC board space requirements. The LTC6910-2ITS8#TRMPBF is an inverting amplifier that offers variable gain settings controlled by a 3-bit digital input, making it versatile for various signal processing applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|

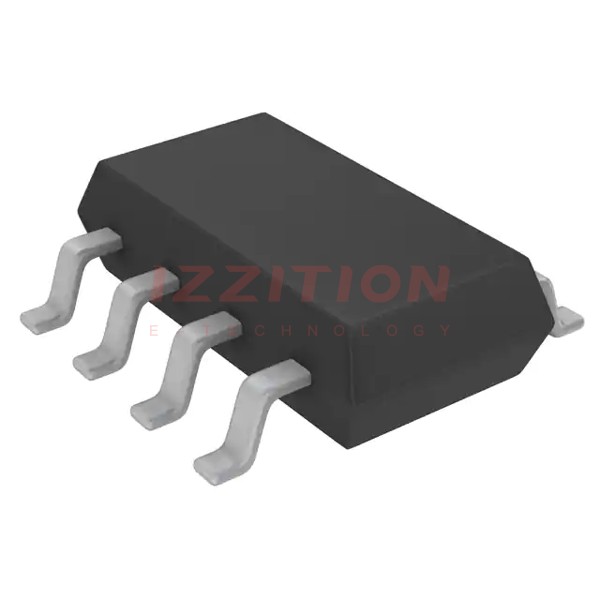

| Package | 8-Lead SOT-23 (TSOT-23-8) | |
| Number of Pins | 8 | |
| Number of Circuits | 1 | |
| Slew Rate | 16 V/μs | |
| Input Offset Voltage (Vos) | 3 mV | |
| Power Supply Rejection Ratio (PSRR) | 60 dB | |
| Common Mode Rejection Ratio | 55 dB | |
| Supply Voltage | 2.7V to 10.5V (±2.7V to ±5.25V) | |
| Operating Temperature Range | –40°C to 85°C | |
| Gain Settings | 0, 1, 2, 4, 8, 16, 32, 64 V/V |
Key Features
- Low noise operation
- Digitally programmable gain with 3-bit input control
- Inverting amplifier configuration with rail-to-rail output
- Supports single or split power supply operation from 2.7V to 10.5V
- Compact 8-lead SOT-23 package
- Internal half-supply reference for single power supply applications
- High slew rate of 16 V/μs
- Good power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR)
Applications
The LTC6910-2ITS8#TRMPBF is suitable for a variety of applications requiring precise and programmable gain control, such as:
- Signal conditioning in industrial and medical devices
- Audio and video processing systems
- Automotive and aerospace electronics
- Test and measurement equipment
- General-purpose analog signal processing
Q & A
- What is the package type of the LTC6910-2ITS8#TRMPBF?
The LTC6910-2ITS8#TRMPBF comes in an 8-lead SOT-23 (TSOT-23-8) package. - What are the gain settings available for the LTC6910-2ITS8#TRMPBF?
The gain settings are 0, 1, 2, 4, 8, 16, 32, and 64 V/V. - What is the operating temperature range of the LTC6910-2ITS8#TRMPBF?
The operating temperature range is –40°C to 85°C. - Can the LTC6910-2ITS8#TRMPBF operate with a single power supply?
Yes, it can operate with a single power supply from 2.7V to 10.5V. - What is the slew rate of the LTC6910-2ITS8#TRMPBF?
The slew rate is 16 V/μs. - What are the typical values for PSRR and CMRR?
The typical values are 60 dB for PSRR and 55 dB for CMRR. - Is the LTC6910-2ITS8#TRMPBF suitable for high-frequency applications?
Yes, with its high slew rate and low noise operation, it is suitable for high-frequency applications. - How is the gain controlled in the LTC6910-2ITS8#TRMPBF?
The gain is controlled using a 3-bit digital input. - What is the input offset voltage (Vos) of the LTC6910-2ITS8#TRMPBF?
The input offset voltage (Vos) is typically 3 mV. - Is the LTC6910-2ITS8#TRMPBF RoHS compliant?
Yes, the LTC6910-2ITS8#TRMPBF is RoHS compliant.
