Overview
The LTC6910-1ITS8#TRMPBF is a low noise, digitally programmable gain amplifier (PGA) produced by Analog Devices Inc. This component is part of the LTC6910 family, known for its ease of use and minimal PC board space requirements. It is designed to provide flexible gain settings and high performance in various signal processing applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Total Supply Voltage (V+ to V–) | 11 | V |
| Input Current | ±25 | mA |
| Operating Temperature Range | –40°C to 85°C | |
| Storage Temperature Range | –65°C to 150°C | |
| Lead Temperature (Soldering, 10 sec) | 300 | °C |
| Minimum Dual Supply Voltage | 1.35 | V |
| Minimum Supply Voltage | 2.7 | V |
| Nominal Gain Bandwidth Product | 11 | MHz |

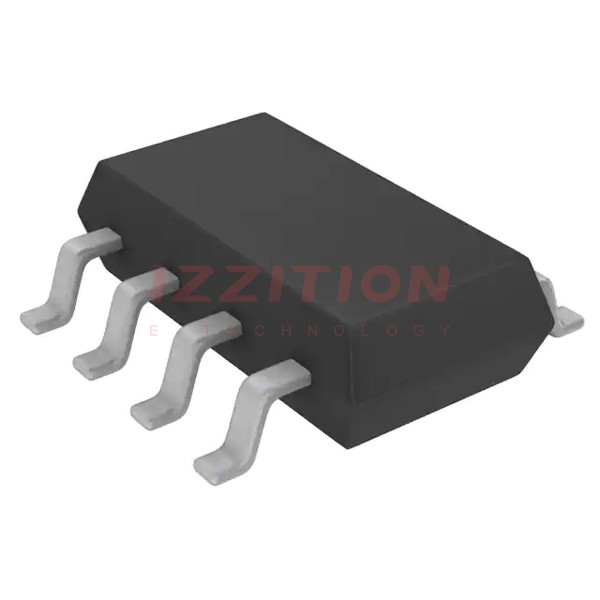

| Package Type | 8-Lead Plastic TSOT-23 |
Key Features
- Low noise operation, making it suitable for high precision applications.
- Digitally programmable gain, allowing for flexible gain settings through digital inputs.
- Compact 8-Lead Plastic TSOT-23 package, minimizing PC board space.
- Wide operating temperature range: –40°C to 85°C (or up to 125°C for the H-grade version).
- High gain bandwidth product of 11 MHz.
Applications
The LTC6910-1ITS8#TRMPBF is versatile and can be used in a variety of applications, including:
- Audio and video signal processing.
- Medical devices requiring high precision and low noise.
- Industrial control systems where adjustable gain is necessary.
- Test and measurement equipment.
- Automotive systems requiring robust and reliable signal amplification.
Q & A
- What is the LTC6910-1ITS8#TRMPBF?
The LTC6910-1ITS8#TRMPBF is a low noise, digitally programmable gain amplifier produced by Analog Devices Inc.
- What is the minimum supply voltage for the LTC6910-1ITS8#TRMPBF?
The minimum supply voltage is 2.7V.
- What is the operating temperature range for the LTC6910-1ITS8#TRMPBF?
The operating temperature range is –40°C to 85°C.
- What is the gain bandwidth product of the LTC6910-1ITS8#TRMPBF?
The nominal gain bandwidth product is 11 MHz.
- What package type does the LTC6910-1ITS8#TRMPBF come in?
The component comes in an 8-Lead Plastic TSOT-23 package.
- What are some common applications for the LTC6910-1ITS8#TRMPBF?
Common applications include audio and video signal processing, medical devices, industrial control systems, test and measurement equipment, and automotive systems.
- How is the gain of the LTC6910-1ITS8#TRMPBF programmed?
The gain is programmed digitally through the G2, G1, and G0 inputs.
- What is the maximum input current for the LTC6910-1ITS8#TRMPBF?
The maximum input current is ±25mA.
- What is the storage temperature range for the LTC6910-1ITS8#TRMPBF?
The storage temperature range is –65°C to 150°C.
- Is the LTC6910-1ITS8#TRMPBF lead-free?
