Overview
The LTC6226IDC#TRMPBF is a high-speed, low-noise operational amplifier (op amp) produced by Analog Devices Inc. This device is part of the LTC6226 family, which includes very fast, low noise rail-to-rail output, unity gain stable single/dual op amps. The LTC6226 is designed for applications requiring high dynamic range and the ability to handle very fast signals, such as driving A/D converters.
Key Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Gain-Bandwidth Product | 420 MHz | f = 5 MHz, RL = 1 kΩ to Half Supply |
| Slew Rate | 180 V/μs | AV = +4, 2 V Output Step |
| Input Referred Voltage Noise | 1 nV/√Hz | |
| Supply Voltage Range | 2.8 V to 11.75 V | |
| Operating Temperature Range | –40°C to 85°C | |

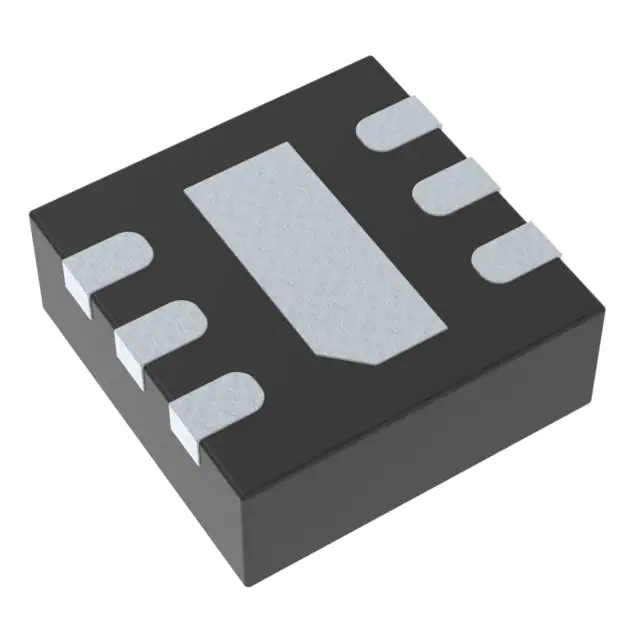

| Package | 6-Lead 2mm × 2mm DFN | |
| Full Power Bandwidth | 8 MHz | VOUT = 2 V-P-P, AV = –1, THD < –40 dBc |
| Settling Time to 0.1% | 84 ns | AV = 1, VCM = 1 V, 1 V Output Step, RL = 1 kΩ to VCM |
Key Features
- High gain-bandwidth product of 420 MHz and a slew rate of 180 V/μs.
- Low input referred voltage noise of 1 nV/√Hz.
- Low distortion of less than –90 dBc for 4 V-P-P signals at 1 MHz.
- High gain (139 dB) and high common-mode rejection ratio (CMRR) of 114 dB.
- Rail-to-rail output.
- Unity gain stable.
- Low offset and low offset drift.
Applications
The LTC6226IDC#TRMPBF is ideal for applications that require high dynamic range and the ability to handle fast signals. These include:
- Driving A/D converters.
- High-speed data acquisition systems.
- Video and audio processing.
- Medical imaging and diagnostic equipment.
- High-frequency signal processing.
Q & A
- What is the gain-bandwidth product of the LTC6226IDC#TRMPBF?
The gain-bandwidth product is 420 MHz. - What is the slew rate of the LTC6226IDC#TRMPBF?
The slew rate is 180 V/μs. - What is the input referred voltage noise of the LTC6226IDC#TRMPBF?
The input referred voltage noise is 1 nV/√Hz. - What is the supply voltage range for the LTC6226IDC#TRMPBF?
The supply voltage range is from 2.8 V to 11.75 V. - What is the operating temperature range for the LTC6226IDC#TRMPBF?
The operating temperature range is from –40°C to 85°C. - What package type is the LTC6226IDC#TRMPBF available in?
The LTC6226IDC#TRMPBF is available in a 6-Lead 2mm × 2mm DFN package. - What is the full power bandwidth of the LTC6226IDC#TRMPBF?
The full power bandwidth is 8 MHz for VOUT = 2 V-P-P, AV = –1, THD < –40 dBc. - How long does it take for the LTC6226IDC#TRMPBF to settle to 0.1%?
The settling time to 0.1% is 84 ns for AV = 1, VCM = 1 V, 1 V Output Step, RL = 1 kΩ to VCM. - Is the LTC6226IDC#TRMPBF suitable for high-speed data acquisition systems?
Yes, it is suitable due to its high gain-bandwidth product and low noise characteristics. - What are some common applications of the LTC6226IDC#TRMPBF?
Common applications include driving A/D converters, high-speed data acquisition systems, video and audio processing, medical imaging, and high-frequency signal processing.
