Overview

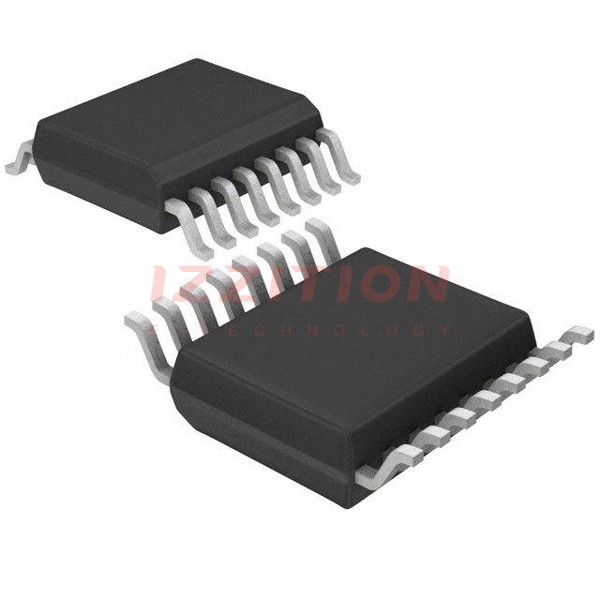

The LTC2624CGN#TRPBF is a quad 12-bit rail-to-rail digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the LTC2604/LTC2614/LTC2624 family, which includes 16-bit, 14-bit, and 12-bit DACs, respectively. The LTC2624 is housed in a 16-lead narrow SSOP package and is designed for high-performance applications requiring precise voltage output.
The device features separate reference inputs for each DAC, built-in high-performance output buffers, and is guaranteed monotonic over the full operating temperature range. It operates on a simple SPI/MICROWIRE compatible 3-wire serial interface, supporting clock rates up to 50MHz, and includes daisy-chain capability and a hardware CLR function.
Key Specifications
Parameter | Value | Units |
---|---|---|
Resolution | 12 bits | |
Supply Voltage Range | 2.5V to 5.5V | V |
Output Voltage Range | Rail-to-Rail | |
Reference Inputs | Separate for each DAC | |
Interface | SPI/MICROWIRE compatible 3-wire serial interface | |
Clock Rate | Up to 50MHz | Hz |
Power Consumption (per DAC) | 250µA at 3V supply, 1µA max in power-down | A |
Package Type | 16-Lead Narrow SSOP | |
Operating Temperature Range | 0°C to 70°C (or 40°C to 85°C for 'I' grade) | °C |
Settling Time | ±0.024% (±1LSB at 12 bits), 7µs to 9µs | % / µs |
Key Features
- Quad 12-bit rail-to-rail voltage output DACs
- Separate reference inputs for each DAC
- Built-in high-performance output buffers
- Guaranteed monotonic over the full operating temperature range
- SPI/MICROWIRE compatible 3-wire serial interface with clock rates up to 50MHz
- Daisy-chain capability and hardware CLR function
- Low power operation: 250µA per DAC at 3V supply, 1µA max in power-down
- Individual DAC power-down feature
- Ultralow crosstalk between DACs
- Power-on reset circuit ensuring outputs stay at zero scale or midscale until a valid write and update occur
Applications
The LTC2624CGN#TRPBF is suitable for a variety of high-performance applications, including:
- Industrial control systems requiring precise voltage output
- Aerospace and defense systems where reliability and accuracy are critical
- Medical devices that need stable and accurate voltage outputs
- Automotive systems for sensor calibration and control
- Test and measurement equipment where precision is paramount
Q & A
- What is the resolution of the LTC2624CGN#TRPBF DAC?
The LTC2624CGN#TRPBF has a resolution of 12 bits.
- What is the supply voltage range for the LTC2624CGN#TRPBF?
The supply voltage range is from 2.5V to 5.5V.
- Does the LTC2624CGN#TRPBF have separate reference inputs for each DAC?
- What type of interface does the LTC2624CGN#TRPBF use?
The LTC2624CGN#TRPBF uses a SPI/MICROWIRE compatible 3-wire serial interface.
- What is the maximum clock rate for the serial interface?
The maximum clock rate is up to 50MHz.
- How much power does each DAC consume at 3V supply?
Each DAC consumes 250µA at 3V supply.
- What is the package type of the LTC2624CGN#TRPBF?
The package type is a 16-Lead Narrow SSOP.
- What is the operating temperature range for the LTC2624CGN#TRPBF?
The operating temperature range is from 0°C to 70°C (or 40°C to 85°C for 'I' grade).
- Does the LTC2624CGN#TRPBF have a power-on reset feature?
- What is the settling time for the LTC2624CGN#TRPBF?
The settling time is ±0.024% (±1LSB at 12 bits), typically 7µs to 9µs.
