Overview
The LTC2273IUJ is a high-performance, 16-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of the LTC2273 series, which includes the LTC2273 and LTC2272 models, differing primarily in their sampling rates. The LTC2273IUJ operates at a sampling rate of 80 Msps, making it suitable for applications requiring high-speed data conversion and precise signal digitization.
The ADC features a pipelined architecture and a high-speed serial interface compliant with the JEDEC JESD204 specification. It is designed to handle high-frequency, wide dynamic range signals with an input bandwidth of 700 MHz. The device includes a programmable gain amplifier (PGA) front end, allowing for optimization of the input range.
Key Specifications
| Parameter | Value | Units |
|---|---|---|
| Number of Bits | 16 | |
| Sampling Rate | 80 Msps | |
| Input Type | Differential | |
| Data Interface | JESD204 | |
| Architecture | Pipelined | |
| Reference Type | Internal | |
| Analog Supply Voltage | 3.135V to 3.465V | V |
| Digital Supply Voltage | 3.135V to 3.465V | V |
| Power Dissipation | 1100 mW | mW |
| Integral Linearity Error | ±1.2 LSB | LSB |
| Differential Linearity Error | ±0.3 LSB | LSB |
| Spurious Free Dynamic Range (SFDR) | 100 dB | dB |
| Signal to Noise and Distortion Ratio (SINAD) | 77.6 dB | dB |
| Operating Temperature | -40°C to 85°C | °C |

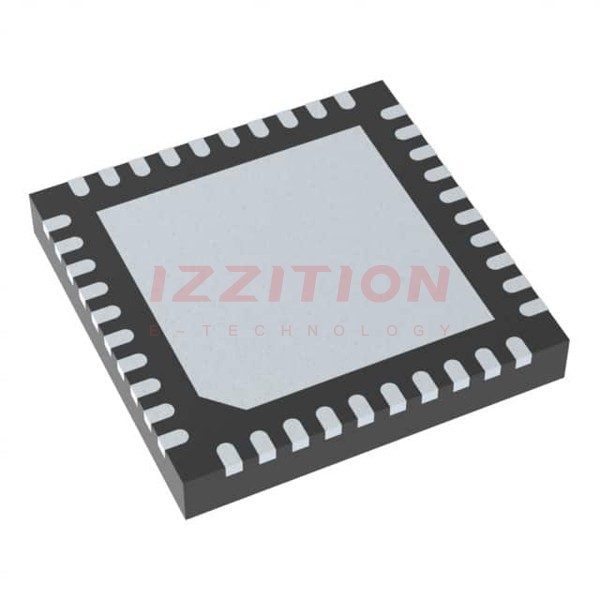

| Package | 40-Pin QFN (6mm × 6mm) |
Key Features
- High-speed sampling rate of 80 Msps
- 16-bit resolution with high accuracy and low noise floor (77.7 dBFS)
- Pipelined architecture for efficient data conversion
- High-speed serial interface compliant with JEDEC JESD204 specification
- Programmable gain amplifier (PGA) front end for input range optimization
- Single 3.3V supply voltage
- Low power dissipation of 1100 mW
- Optional internal dither for improved noise performance
- Clock duty cycle stabilizer for high performance across various clock duty cycles
- Compact 40-Pin QFN package (6mm × 6mm)
Applications
- Telecommunications and receivers
- Cellular base stations
- Spectrum analysis and imaging systems
- Automated test equipment (ATE)
- High-speed data acquisition systems
- Industrial automation and control systems
Q & A
- What is the sampling rate of the LTC2273IUJ ADC?
The LTC2273IUJ ADC has a sampling rate of 80 Msps.
- What is the resolution of the LTC2273IUJ ADC?
The LTC2273IUJ ADC has a resolution of 16 bits.
- What type of input does the LTC2273IUJ ADC support?
The LTC2273IUJ ADC supports differential inputs.
- What is the data interface of the LTC2273IUJ ADC?
The LTC2273IUJ ADC uses a high-speed serial interface compliant with the JEDEC JESD204 specification.
- What is the power dissipation of the LTC2273IUJ ADC?
The power dissipation of the LTC2273IUJ ADC is 1100 mW.
- What is the operating temperature range of the LTC2273IUJ ADC?
The operating temperature range of the LTC2273IUJ ADC is -40°C to 85°C.
- What package type is used for the LTC2273IUJ ADC?
The LTC2273IUJ ADC is packaged in a 40-Pin QFN (6mm × 6mm).
- Does the LTC2273IUJ ADC have a PGA front end?
Yes, the LTC2273IUJ ADC includes a programmable gain amplifier (PGA) front end for input range optimization.
- What is the SFDR of the LTC2273IUJ ADC?
The Spurious Free Dynamic Range (SFDR) of the LTC2273IUJ ADC is 100 dB.
- What is the SINAD of the LTC2273IUJ ADC?
The Signal to Noise and Distortion Ratio (SINAD) of the LTC2273IUJ ADC is 77.6 dB.
