LTC2241IUP-10#TRPBF
  • Share:

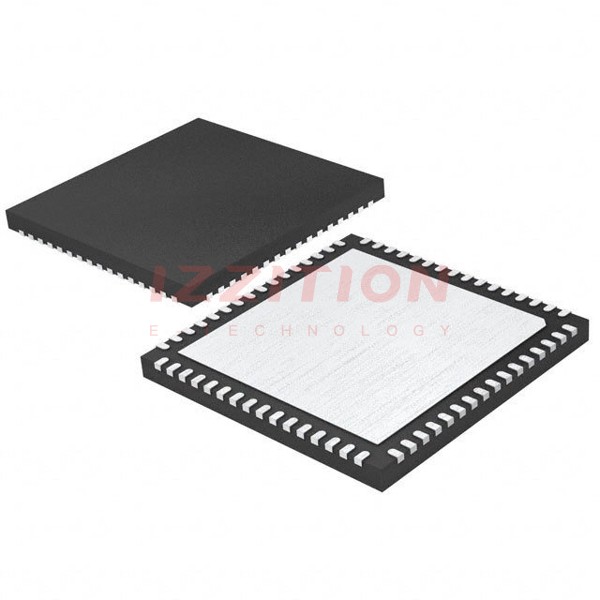

Analog Devices Inc. LTC2241IUP-10#TRPBF

Manufacturer No:
LTC2241IUP-10#TRPBF
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Description:
IC ADC 10BIT PIPELINED 64QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2241IUP-10#TRPBF is a high-performance 10-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This device is designed for digitizing high-frequency, wide dynamic range signals, making it ideal for demanding communications applications. With a sampling rate of 210 Msps, it offers excellent AC performance, including a signal-to-noise ratio (SNR) of 60.5 dB and a spurious free dynamic range (SFDR) of 78 dB. The ultralow jitter of 95 fsRMS enables IF undersampling with superior noise performance.

Key Specifications

Parameter Value
Resolution 10 bits
Sampling Rate 210 Msps
Signal-to-Noise Ratio (SNR) 60.5 dB
Spurious Free Dynamic Range (SFDR) 78 dB
Jitter 95 fsRMS
Integral Nonlinearity (INL) ±0.3 LSB (typ)
Differential Nonlinearity (DNL) ±0.15 LSB (typ)
Input Range ±0.5V to ±1V (selectable)
Output Format Differential LVDS, Single-ended CMOS
Package 64-QFN
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant

Key Features

  • High-speed sampling at 210 Msps with 10-bit resolution.
  • Excellent AC performance with 60.5 dB SNR and 78 dB SFDR.
  • Ultralow jitter of 95 fsRMS for IF undersampling with excellent noise performance.
  • Flexible output formats: differential LVDS or single-ended CMOS with various demultiplexed options.
  • Separate output power supply allowing CMOS output swing from 0.5V to 2.625V.
  • Selectable input ranges: ±0.5V, ±1V, or an external reference range.
  • No missing codes over temperature.

Applications

The LTC2241IUP-10#TRPBF is particularly suited for demanding communications applications, including:

  • High-frequency signal processing.
  • Wireless communication systems.
  • Radar and surveillance systems.
  • Medical imaging and diagnostics.
  • High-speed data acquisition systems.

Q & A

  1. What is the sampling rate of the LTC2241IUP-10#TRPBF?

    The sampling rate is 210 Msps.

  2. What is the resolution of the LTC2241IUP-10#TRPBF?

    The resolution is 10 bits.

  3. What are the output format options for the LTC2241IUP-10#TRPBF?

    The output formats include differential LVDS and single-ended CMOS with various demultiplexed options.

  4. What is the jitter performance of the LTC2241IUP-10#TRPBF?

    The jitter is 95 fsRMS.

  5. Can the input range of the LTC2241IUP-10#TRPBF be adjusted?

    Yes, the input range can be selected as ±0.5V, ±1V, or an external reference range.

  6. What is the package type of the LTC2241IUP-10#TRPBF?

    The package type is 64-QFN.

  7. Is the LTC2241IUP-10#TRPBF RoHS compliant?

    No, it contains lead and is RoHS non-compliant.

  8. What are the typical applications for the LTC2241IUP-10#TRPBF?

    Typical applications include high-frequency signal processing, wireless communication systems, radar and surveillance systems, medical imaging, and high-speed data acquisition systems.

  9. How does the LTC2241IUP-10#TRPBF handle output voltage swing?

    The CMOS output swing can range from 0.5V to 2.625V using a separate output power supply.

  10. Does the LTC2241IUP-10#TRPBF have any missing codes over temperature?

    No, there are no missing codes over temperature.

Product Attributes

Number of Bits:10
Sampling Rate (Per Second):210M
Number of Inputs:1
Input Type:Differential
Data Interface:LVDS - Parallel, Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:2.375V ~ 2.625V
Voltage - Supply, Digital:2.375V ~ 2.625V
Features:-
Operating Temperature:-40°C ~ 85°C
Package / Case:64-WFQFN Exposed Pad
Supplier Device Package:64-QFN (9x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$59.75
17

Please send RFQ , we will respond immediately.

Same Series
LTC2241CUP-10#PBF
LTC2241CUP-10#PBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241IUP-10#TRPBF
LTC2241IUP-10#TRPBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241IUP-10#PBF
LTC2241IUP-10#PBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241CUP-10
LTC2241CUP-10
IC ADC 10BIT PIPELINED 64QFN
LTC2241IUP-10
LTC2241IUP-10
IC ADC 10BIT PIPELINED 64QFN

Similar Products

Part Number LTC2241IUP-10#TRPBF LTC2242IUP-10#TRPBF LTC2241IUP-12#TRPBF LTC2240IUP-10#TRPBF LTC2241CUP-10#TRPBF
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Active Active
Number of Bits 10 10 12 10 10
Sampling Rate (Per Second) 210M 250M 210M 170M 210M
Number of Inputs 1 1 1 1 1
Input Type Differential Differential Differential Differential Differential
Data Interface LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel LVDS - Parallel, Parallel
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1 1
Architecture Pipelined Pipelined Pipelined Pipelined Pipelined
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V
Voltage - Supply, Digital 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V
Features - - - - -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C 0°C ~ 70°C
Package / Case 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad
Supplier Device Package 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
