LTC2241CUP-10
  • Share:

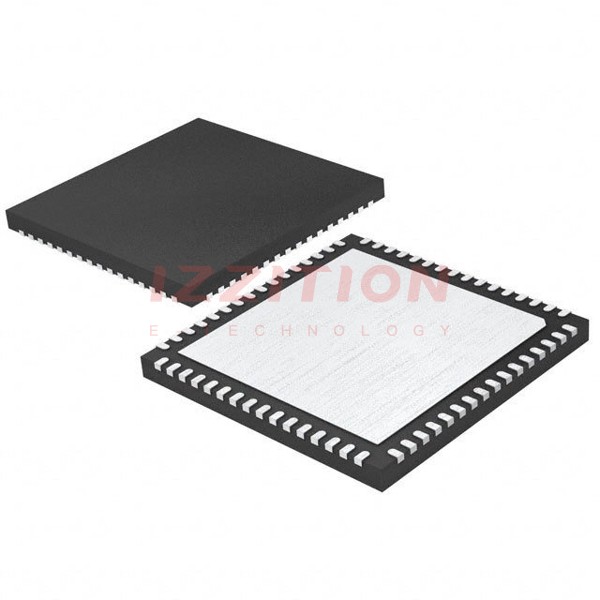

Analog Devices Inc. LTC2241CUP-10

Manufacturer No:
LTC2241CUP-10
Manufacturer:
Analog Devices Inc.
Package:
Tube
Description:
IC ADC 10BIT PIPELINED 64QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The LTC2241-10, produced by Analog Devices Inc., is a high-performance 10-bit analog-to-digital converter (ADC) designed to digitize high-frequency, wide dynamic range signals. With a sampling rate of 210 Msps, this ADC is ideal for demanding communications applications. It features excellent AC performance, including a signal-to-noise ratio (SNR) of 60.5 dB and a spurious free dynamic range (SFDR) of 78 dB. The ultralow jitter of 95 fs RMS enables IF undersampling with superior noise performance.

Key Specifications

ParameterValue
Number of Bits10
Sampling Rate210 Msps
Signal-to-Noise Ratio (SNR)60.5 dB
Spurious Free Dynamic Range (SFDR)78 dB
Full Power Bandwidth1.2 GHz
Supply Voltage2.5 V
Power Dissipation585 mW
Output FormatsLVDS, CMOS, or Demultiplexed CMOS
Input Ranges±0.5 V or ±1 V
Integral Non-Linearity (INL)±0.3 LSB (typ)
Differential Non-Linearity (DNL)±0.15 LSB (typ)
Package64-Pin 9mm × 9mm QFN
Operating Temperature-40°C to 85°C

Key Features

  • No missing codes over temperature.
  • Optional clock duty cycle stabilizer for high performance over a wide range of clock duty cycles.
  • Shutdown and nap modes for power management.
  • Data ready output clock.
  • Pin compatible family with other LTC224x models.
  • Support for differential or single-ended inputs with various signal types (sine wave, PECL, LVDS, TTL, or CMOS).
  • Separate output power supply allowing CMOS output swing to range from 0.5 V to 2.625 V.

Applications

  • Wireless and Wired Broadband Communication.
  • Cable Head-End Systems.
  • Power Amplifier Linearization.
  • Communications Test Equipment.

Q & A

  1. What is the sampling rate of the LTC2241-10?
    The sampling rate of the LTC2241-10 is 210 Msps.
  2. What are the key AC performance metrics of the LTC2241-10?
    The key AC performance metrics include a SNR of 60.5 dB and an SFDR of 78 dB.
  3. What are the available output formats for the LTC2241-10?
    The available output formats are LVDS, CMOS, or demultiplexed CMOS.
  4. What are the selectable input ranges for the LTC2241-10?
    The selectable input ranges are ±0.5 V or ±1 V.
  5. Does the LTC2241-10 have any power-saving modes?
    Yes, it has shutdown and nap modes for power management.
  6. What is the package type and size of the LTC2241-10?
    The package type is a 64-Pin 9mm × 9mm QFN.
  7. What is the operating temperature range of the LTC2241-10?
    The operating temperature range is -40°C to 85°C.
  8. Can the LTC2241-10 handle differential or single-ended inputs?
    Yes, it can handle both differential and single-ended inputs with various signal types.
  9. Is there an optional feature for clock duty cycle stabilization?
    Yes, there is an optional clock duty cycle stabilizer.
  10. What are some typical applications of the LTC2241-10?
    Typical applications include wireless and wired broadband communication, cable head-end systems, power amplifier linearization, and communications test equipment.

Product Attributes

Number of Bits:10
Sampling Rate (Per Second):210M
Number of Inputs:1
Input Type:Differential
Data Interface:Parallel
Configuration:S/H-ADC
Ratio - S/H:ADC:1:1
Number of A/D Converters:1
Architecture:Pipelined
Reference Type:External, Internal
Voltage - Supply, Analog:2.375V ~ 2.625V
Voltage - Supply, Digital:2.375V ~ 2.625V
Features:-
Operating Temperature:0°C ~ 70°C
Package / Case:64-WFQFN Exposed Pad
Supplier Device Package:64-QFN (9x9)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
168

Please send RFQ , we will respond immediately.

Same Series
LTC2241CUP-10#TRPBF
LTC2241CUP-10#TRPBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241CUP-10#PBF
LTC2241CUP-10#PBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241IUP-10#PBF
LTC2241IUP-10#PBF
IC ADC 10BIT PIPELINED 64QFN
LTC2241CUP-10
LTC2241CUP-10
IC ADC 10BIT PIPELINED 64QFN
LTC2241IUP-10
LTC2241IUP-10
IC ADC 10BIT PIPELINED 64QFN

Similar Products

Part Number LTC2241CUP-10 LTC2241CUP-12 LTC2241IUP-10 LTC2242CUP-10 LTC2240CUP-10
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Number of Bits 10 12 10 10 10
Sampling Rate (Per Second) 210M 210M 210M 250M 170M
Number of Inputs 1 1 1 1 1
Input Type Differential Differential Differential Differential Differential
Data Interface Parallel Parallel Parallel Parallel Parallel
Configuration S/H-ADC S/H-ADC S/H-ADC S/H-ADC S/H-ADC
Ratio - S/H:ADC 1:1 1:1 1:1 1:1 1:1
Number of A/D Converters 1 1 1 1 1
Architecture Pipelined Pipelined Pipelined Pipelined Pipelined
Reference Type External, Internal External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V
Voltage - Supply, Digital 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V 2.375V ~ 2.625V
Features - - - - -
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C -40°C ~ 85°C 0°C ~ 70°C 0°C ~ 70°C
Package / Case 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad 64-WFQFN Exposed Pad
Supplier Device Package 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9) 64-QFN (9x9)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
