Overview
The LTC1451CS8#TRPBF is a 12-bit rail-to-rail micropower digital-to-analog converter (DAC) produced by Analog Devices Inc. This component is part of the LTC1451 family, which includes single-supply, rail-to-rail voltage output DACs. The LTC1451 features an onboard reference of 2.048V and a full-scale output of 4.095V, making it suitable for a variety of applications requiring precise analog output.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Output Type | Rail-to-Rail Voltage Output |
| Onboard Reference | 2.048V |
| Full-Scale Output | 4.095V |
| Supply Voltage | 4.5V to 5.5V |

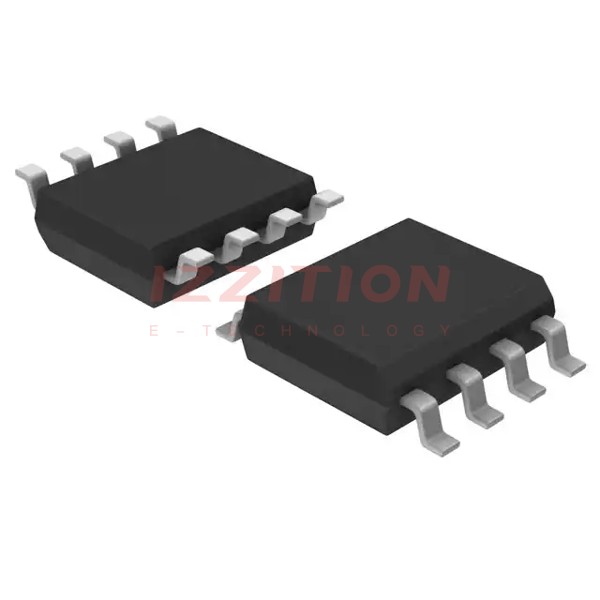

| Package Type | 8-Lead SOIC (Narrow 0.15 Inch) |
| Interface | 3-wire cascadable serial interface |
| Operating Temperature | -40°C to 85°C (Industrial Grade) |
Key Features
- Low power consumption, making it ideal for battery-powered applications.
- Space-saving 8-pin SO package with no external components required.
- Easy-to-use 3-wire cascadable serial interface.
- Onboard buffer amplifier.
- High accuracy and precision with a 12-bit resolution.
Applications
The LTC1451CS8#TRPBF is suitable for various applications that require precise analog output, including:
- Battery-powered devices due to its low power consumption.
- Industrial control systems.
- Medical devices.
- Aerospace and defense systems.
- Automotive systems.
Q & A
- What is the resolution of the LTC1451CS8#TRPBF?
The resolution of the LTC1451CS8#TRPBF is 12 bits. - What is the onboard reference voltage of the LTC1451CS8#TRPBF?
The onboard reference voltage is 2.048V. - What is the full-scale output voltage of the LTC1451CS8#TRPBF?
The full-scale output voltage is 4.095V. - What is the supply voltage range for the LTC1451CS8#TRPBF?
The supply voltage range is 4.5V to 5.5V. - What type of package does the LTC1451CS8#TRPBF come in?
The LTC1451CS8#TRPBF comes in an 8-Lead SOIC (Narrow 0.15 Inch) package. - What kind of interface does the LTC1451CS8#TRPBF use?
The LTC1451CS8#TRPBF uses a 3-wire cascadable serial interface. - Is the LTC1451CS8#TRPBF suitable for battery-powered applications?
Yes, it is suitable due to its low power consumption. - What are some common applications of the LTC1451CS8#TRPBF?
Common applications include industrial control systems, medical devices, aerospace and defense systems, and automotive systems. - Does the LTC1451CS8#TRPBF require external components?
No, it does not require external components. - What is the operating temperature range for the LTC1451CS8#TRPBF?
The operating temperature range is -40°C to 85°C (Industrial Grade).
