Overview

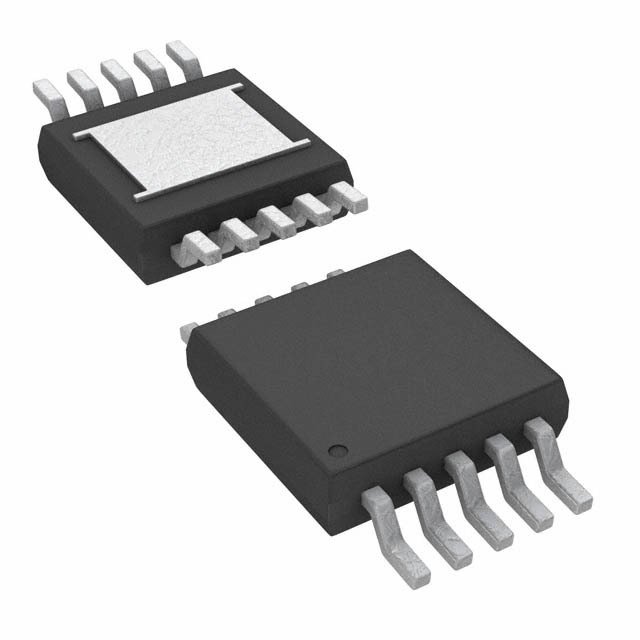

The LTC1403CMSE-1#PBF is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-speed and low-power applications, making it suitable for a variety of industrial, medical, and consumer electronics. The LTC1403 features a compact 10-MSOP package, enhancing its usability in space-constrained designs.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Conversion Rate | Up to 1.5 MSPS |
| Input Range | 0 to 5V (single-ended) |
| Power Supply | Single 5V supply |
| Power Consumption | Typically 10mW at 1.5MSPS |
| Package Type | 10-MSOP |
| Operating Temperature | -40°C to 85°C |
Key Features
- High-speed conversion rate of up to 1.5 million samples per second (MSPS)
- Low power consumption, typically 10mW at 1.5MSPS
- Compact 10-MSOP package for space-efficient designs
- Single 5V power supply
- High accuracy with ±1LSB INL and ±1LSB DNL
- Internal reference and buffer
Applications
- Industrial automation and control systems
- Medical devices, such as patient monitoring and diagnostic equipment
- Consumer electronics, including audio and video devices
- Data acquisition systems
- Automotive systems, particularly in safety and infotainment applications
Q & A
- What is the resolution of the LTC1403CMSE-1#PBF? The resolution is 12 bits.
- What is the maximum conversion rate of the LTC1403CMSE-1#PBF? The maximum conversion rate is up to 1.5 MSPS.
- What is the input range of the LTC1403CMSE-1#PBF? The input range is 0 to 5V (single-ended).
- What is the power supply requirement for the LTC1403CMSE-1#PBF? It requires a single 5V supply.
- How much power does the LTC1403CMSE-1#PBF typically consume? It typically consumes 10mW at 1.5MSPS.
- What is the package type of the LTC1403CMSE-1#PBF? The package type is 10-MSOP.
- What is the operating temperature range of the LTC1403CMSE-1#PBF? The operating temperature range is -40°C to 85°C.
- Does the LTC1403CMSE-1#PBF have an internal reference and buffer? Yes, it has an internal reference and buffer.
- What are some common applications of the LTC1403CMSE-1#PBF? Common applications include industrial automation, medical devices, consumer electronics, data acquisition systems, and automotive systems.
- Where can I purchase the LTC1403CMSE-1#PBF? You can purchase it from distributors such as Mouser Electronics, Digi-Key, and other authorized suppliers.
