Overview

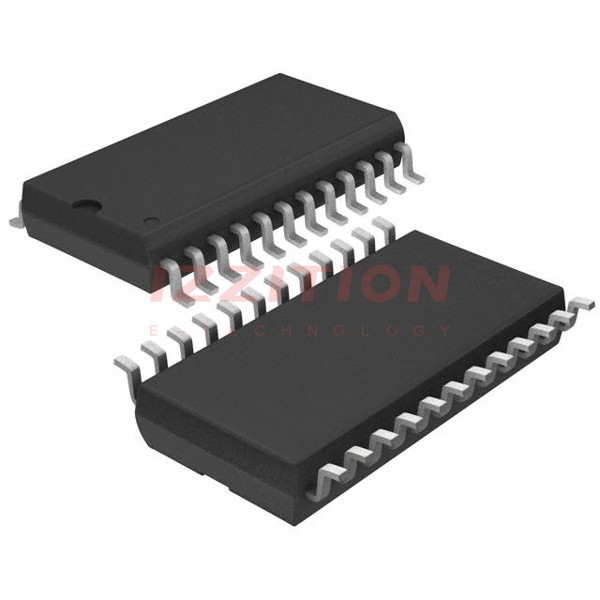

The LTC1278-5ISW#TRPBF is a high-speed, 12-bit analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is designed for high-performance data acquisition and real-time signal processing. It features a successive approximation register (SAR) architecture, which provides high accuracy and speed. The ADC is packaged in a 24-lead SOIC (Small Outline Integrated Circuit) package, making it suitable for a variety of applications requiring precise and rapid analog-to-digital conversion.
Key Specifications
| Specification | Value |
|---|---|
| Resolution | 12 bits |
| Input Type | Single-ended |
| Data Interface | Parallel |
| Architecture | Successive Approximation Register (SAR) |
| Sampling Rate | Up to 400k samples per second |
| Supply Voltage (Analog) | 5V, -2.45V to 5.25V |
| Supply Voltage (Digital) | 5V |
| Package | 24-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -40°C to 85°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Key Features
- High-speed data acquisition with a sampling rate up to 400k samples per second
- Single-ended input and parallel data interface
- Successive Approximation Register (SAR) architecture for high accuracy and speed
- External and internal reference options
- Sample-and-Hold ADC with a 1:1 Sample/Hold to ADC ratio
- Robust construction for longevity and reliability across wide temperature ranges
- Compatible with various microcontrollers and digital systems
- Tape & Reel (TR) packaging for automated surface mount manufacturing
Applications
The LTC1278-5ISW#TRPBF is ideal for various applications requiring high-speed and precise analog-to-digital conversion. These include:
- Data acquisition systems
- Instrumentation and control systems
- Communication systems
- Real-time signal processing applications
- Industrial automation and monitoring systems
Q & A
- What is the resolution of the LTC1278-5ISW#TRPBF ADC?
The LTC1278-5ISW#TRPBF has a 12-bit resolution. - What is the sampling rate of the LTC1278-5ISW#TRPBF?
The sampling rate is up to 400k samples per second. - What type of input does the LTC1278-5ISW#TRPBF support?
The LTC1278-5ISW#TRPBF supports single-ended inputs. - What is the data interface type of the LTC1278-5ISW#TRPBF?
The data interface is parallel. - What is the architecture of the LTC1278-5ISW#TRPBF ADC?
The architecture is Successive Approximation Register (SAR). - What are the supply voltage requirements for the LTC1278-5ISW#TRPBF?
The supply voltage for both analog and digital is 5V, with an analog voltage range of -2.45V to 5.25V. - What is the package type of the LTC1278-5ISW#TRPBF?
The package type is 24-SOIC (0.295", 7.50mm Width). - What is the operating temperature range of the LTC1278-5ISW#TRPBF?
The operating temperature range is -40°C to 85°C. - Is the LTC1278-5ISW#TRPBF lead-free and RoHS compliant?
Yes, the LTC1278-5ISW#TRPBF is lead-free and RoHS compliant. - What are some common applications of the LTC1278-5ISW#TRPBF?
Common applications include data acquisition systems, instrumentation and control, communication systems, and real-time signal processing.
