Overview

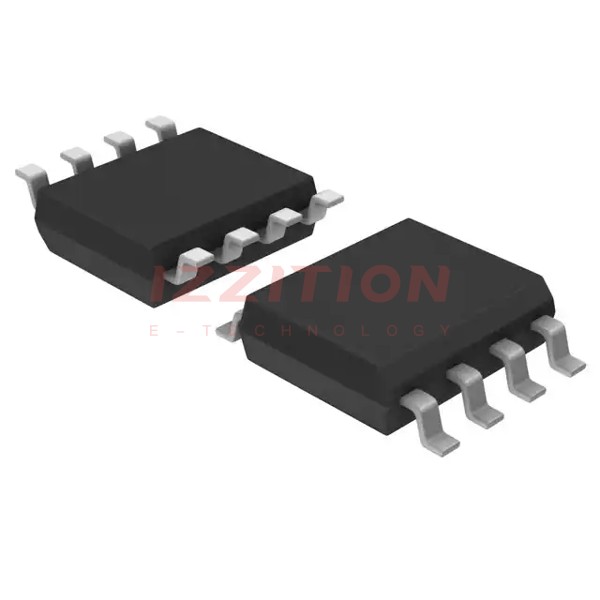

The LTC1150CS8#TRPBF is a precision operational amplifier produced by Analog Devices Inc. This device is part of the LTC1150 series, known for its high performance and zero-drift characteristics. The LTC1150CS8#TRPBF is particularly notable for its internal capacitors, which enhance its stability and performance in various applications. It operates with a supply voltage range of up to 15V, making it versatile for use in a wide range of electronic systems.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage Range | Up to 15V |
| Input Offset Voltage | Typically 5μV |
| Input Bias Current | Typically 10pA |
| Gain Bandwidth Product | 1.3MHz |
| Operating Temperature Range | -40°C to 125°C |
| Package Type | SO-8 |
Key Features
- Zero-drift architecture for high accuracy and stability.
- Internal capacitors for improved performance and reduced external component count.
- Low input offset voltage (typically 5μV) and low input bias current (typically 10pA).
- High gain bandwidth product of 1.3MHz.
- Wide operating temperature range from -40°C to 125°C.
Applications
The LTC1150CS8#TRPBF is suitable for a variety of applications requiring high precision and stability, including:
- Precision instrumentation and measurement systems.
- Medical devices and diagnostic equipment.
- Aerospace and defense systems.
- Industrial control and automation systems.
- High-reliability consumer electronics.
Q & A
- What is the supply voltage range of the LTC1150CS8#TRPBF? The supply voltage range is up to 15V.
- What is the typical input offset voltage of the LTC1150CS8#TRPBF? The typical input offset voltage is 5μV.
- What is the package type of the LTC1150CS8#TRPBF? The package type is SO-8.
- What is the operating temperature range of the LTC1150CS8#TRPBF? The operating temperature range is from -40°C to 125°C.
- What are the key features of the LTC1150CS8#TRPBF? Key features include zero-drift architecture, internal capacitors, low input offset voltage, low input bias current, and a high gain bandwidth product.
- Where can the LTC1150CS8#TRPBF be used? It can be used in precision instrumentation, medical devices, aerospace and defense systems, industrial control systems, and high-reliability consumer electronics.
- What is the gain bandwidth product of the LTC1150CS8#TRPBF? The gain bandwidth product is 1.3MHz.
- Is the LTC1150CS8#TRPBF suitable for high-temperature applications? Yes, it is suitable for applications with temperatures ranging from -40°C to 125°C.
- What is the typical input bias current of the LTC1150CS8#TRPBF? The typical input bias current is 10pA.
- Why is the LTC1150CS8#TRPBF preferred in precision applications? It is preferred due to its zero-drift architecture, low input offset voltage, and low input bias current, which ensure high accuracy and stability.
