Overview

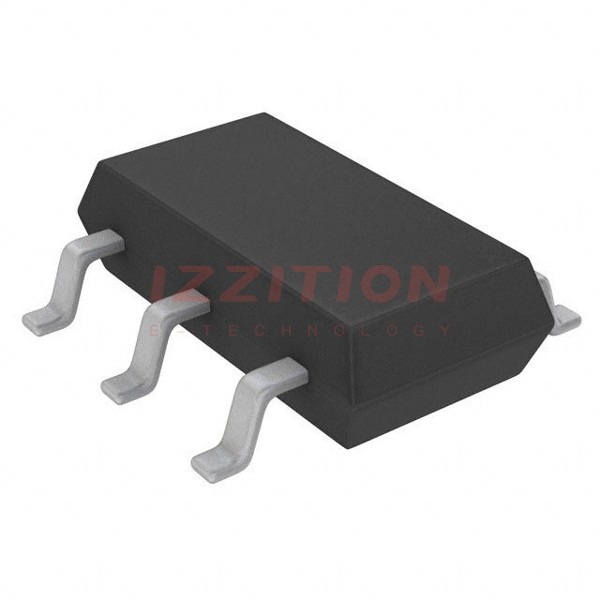

The LT6654AHS6-2.5#TRMPBF is a precision voltage reference from Analog Devices Inc., part of the LT6654 family. This component is designed to offer high accuracy, low noise, low drift, low dropout, and low power consumption. It operates over a wide supply voltage range up to 36V and is fully specified from –55°C to 125°C. The LT6654 is ideal for applications requiring precise voltage references, such as portable equipment, industrial sensing and control, and automotive systems.
Key Specifications
| Parameter | Value |
|---|---|
| Output Voltage | 2.5V |
| Supply Voltage Range | Up to 36V |
| Temperature Range | –55°C to 125°C |
| Output Drive | ±10mA |
| Output Impedance | Low |
| Temperature Drift | 10ppm/°C |
| Initial Accuracy | 0.05% |
| Noise (P-P) | 1.6ppm |
| Package Type | 6-Lead TSOT-23 |
Key Features
- High accuracy and low temperature drift (10ppm/°C)
- Low noise (1.6ppm P-P noise)
- Low dropout and low power consumption
- Buffered output with ±10mA drive capability and low output impedance
- Operates as a low power negative voltage reference with the same precision as a positive reference
- Available in 6-lead TSOT-23 and 8-lead LS8 packages
Applications
The LT6654AHS6-2.5#TRMPBF is suitable for a variety of applications, including:
- Portable equipment
- Industrial sensing and control systems
- Automotive systems
Q & A
- What is the output voltage of the LT6654AHS6-2.5#TRMPBF? The output voltage is 2.5V.
- What is the supply voltage range of the LT6654AHS6-2.5#TRMPBF? The supply voltage range is up to 36V.
- What is the temperature range for the LT6654AHS6-2.5#TRMPBF? The temperature range is from –55°C to 125°C.
- What is the output drive capability of the LT6654AHS6-2.5#TRMPBF? The output drive capability is ±10mA.
- What is the temperature drift of the LT6654AHS6-2.5#TRMPBF? The temperature drift is 10ppm/°C.
- What is the initial accuracy of the LT6654AHS6-2.5#TRMPBF? The initial accuracy is 0.05%.
- What is the noise level of the LT6654AHS6-2.5#TRMPBF? The noise level is 1.6ppm P-P noise.
- In what packages is the LT6654AHS6-2.5#TRMPBF available? It is available in 6-lead TSOT-23 and 8-lead LS8 packages.
- Can the LT6654AHS6-2.5#TRMPBF operate as a negative voltage reference? Yes, it can operate as a low power negative voltage reference with the same precision as a positive reference.
- What are some typical applications for the LT6654AHS6-2.5#TRMPBF? Typical applications include portable equipment, industrial sensing and control, and automotive systems.
