Overview
The LT1210CT7#PBF is a high-performance current feedback operational amplifier produced by Analog Devices Inc. This amplifier is renowned for its high output current and excellent large-signal characteristics, making it suitable for a variety of demanding applications. The LT1210 combines a high slew rate with low distortion, ensuring high fidelity in signal amplification.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage Range | ±4.5 to ±18 | V |
| Output Current | 100 | mA |
| Slew Rate | 1000 | V/μs |
| Bandwidth | 100 | MHz |
| Input Offset Voltage | 1.5 | mV |
| Input Bias Current | 10 | μA |
| Operating Temperature Range | -40 to 85 | °C |

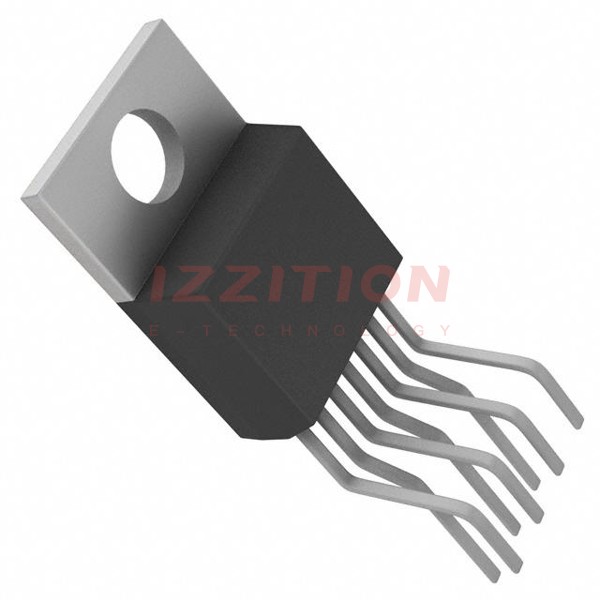

| Package Type | TO-220 |
Key Features
- High output current of up to 100mA, making it suitable for driving heavy loads.
- High slew rate of 1000V/μs, ensuring rapid response to input signals.
- Low distortion and high linearity, ideal for high-fidelity applications.
- Wide supply voltage range from ±4.5V to ±18V, providing flexibility in system design.
- High bandwidth of 100MHz, suitable for high-frequency applications.
Applications
- Audio amplifiers and professional audio equipment due to its high fidelity and low distortion.
- High-speed data acquisition systems where rapid signal response is critical.
- Industrial control systems requiring high output current and reliability.
- Medical equipment where precision and stability are essential.
- Telecommunications and networking equipment for high-frequency signal processing.
Q & A
- What is the LT1210CT7#PBF used for? The LT1210CT7#PBF is a high-performance current feedback operational amplifier used in various applications requiring high output current, high slew rate, and low distortion.
- What is the maximum output current of the LT1210CT7#PBF? The maximum output current is up to 100mA.
- What is the slew rate of the LT1210CT7#PBF? The slew rate is 1000V/μs.
- What is the bandwidth of the LT1210CT7#PBF? The bandwidth is 100MHz.
- What is the input offset voltage of the LT1210CT7#PBF? The input offset voltage is 1.5mV.
- What is the operating temperature range of the LT1210CT7#PBF? The operating temperature range is -40°C to 85°C.
- What package type is the LT1210CT7#PBF available in? The LT1210CT7#PBF is available in the TO-220 package type.
- Is the LT1210CT7#PBF suitable for high-frequency applications? Yes, it is suitable for high-frequency applications due to its high bandwidth and slew rate.
- Can the LT1210CT7#PBF be used in audio amplifiers? Yes, it is often used in audio amplifiers and professional audio equipment due to its high fidelity and low distortion.
- Where can I find detailed specifications for the LT1210CT7#PBF? Detailed specifications can be found on the Analog Devices website and other electronic component distributors like Digi-Key and Mouser.
