Overview

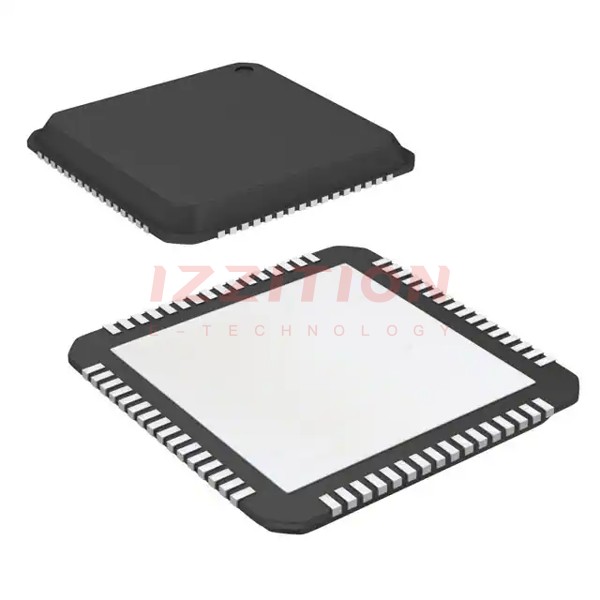

The HMCAD1102 is a high-performance analog-to-digital converter (ADC) produced by Analog Devices Inc. This octal-channel ADC is designed for applications requiring high-speed and low-power consumption. It operates at a sample rate of 65 MSPS and is known for its robust performance and versatility in various signal processing environments.
Key Specifications
| Parameter | Value |
|---|---|
| Sample Rate | 65 MSPS |
| Number of Channels | 8 |
| Resolution | 12/13 bits (internal 13-bit resolution) |
| Power Dissipation | 51 mW per channel |
| SNR (dBFS) | 72.2 dB |
| SFDR (dBc) | 82 dBc |
| Package | Serial (LVDS) Output |
| ECCN Code | 3A991.c.3 |
Key Features
- High-speed operation at 65 MSPS per channel.
- Octal-channel configuration for simultaneous sampling of multiple signals.
- Internal 13-bit resolution enabling full-scale range operation from 2 Vp-p down to 63 mVp-p.
- Low power dissipation of 51 mW per channel.
- High signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) for excellent spectral performance.
- Serial LVDS output for efficient data transfer.
Applications
- High-speed data acquisition systems.
- Radar and electronic warfare systems.
- Medical imaging and diagnostics.
- Test and measurement equipment.
- Aerospace and defense applications requiring high-speed and low-power ADCs.
Q & A
- What is the sample rate of the HMCAD1102?
The HMCAD1102 operates at a sample rate of 65 MSPS.
- How many channels does the HMCAD1102 have?
The HMCAD1102 is an octal-channel ADC, meaning it has 8 channels.
- What is the resolution of the HMCAD1102?
The HMCAD1102 has an internal 13-bit resolution, but it operates at 12 bits.
- What is the power dissipation per channel of the HMCAD1102?
The power dissipation per channel is 51 mW.
- What is the SNR of the HMCAD1102?
The signal-to-noise ratio (SNR) of the HMCAD1102 is 72.2 dBFS.
- What is the SFDR of the HMCAD1102?
The spurious-free dynamic range (SFDR) of the HMCAD1102 is 82 dBc.
- What type of output does the HMCAD1102 use?
The HMCAD1102 uses serial LVDS output.
- What are some common applications of the HMCAD1102?
Common applications include high-speed data acquisition, radar and electronic warfare, medical imaging, test and measurement, and aerospace and defense.
- What is the ECCN code for the HMCAD1102?
The ECCN code for the HMCAD1102 is 3A991.c.3.
- Where can I find more detailed specifications for the HMCAD1102?
You can find detailed specifications on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, and Arrow Electronics.
