Overview

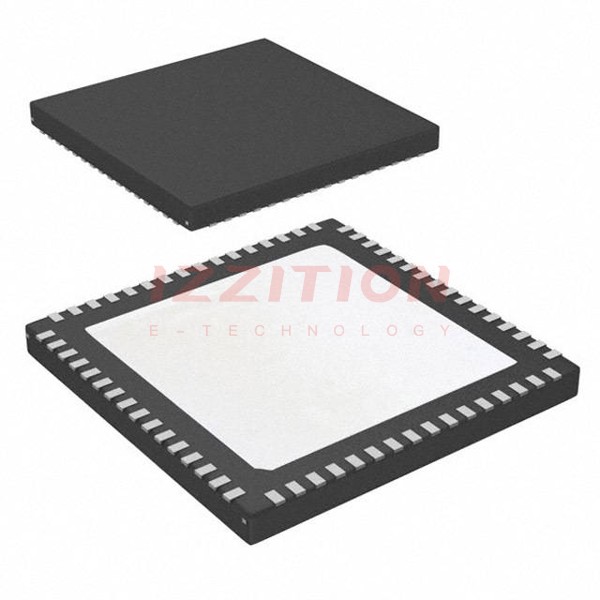

The HMCAD1100 is a high-performance analog-to-digital converter (ADC) produced by Analog Devices Inc. This component is part of Hittite's (now Analog Devices) portfolio of ultra-high speed data converters. The HMCAD1100 is designed to meet the demanding requirements of various high-speed applications, including medical and industrial imaging, radar systems, and high-speed data acquisition.
Key Specifications
| Parameter | Value |
|---|---|
| Sample Rate | 80/105/125 MSPS |
| Resolution | 14 Bits |
| Number of Channels | Quad Channel |
| Power Consumption | 490/605/765 mW |
| Package | LP7DE |
| Operating Temperature | -40°C to 85°C |
Key Features
- High sample rates of 80, 105, and 125 MSPS, making it suitable for high-speed data acquisition.
- Quad-channel configuration, allowing for simultaneous sampling of multiple inputs.
- 14-bit resolution, providing high accuracy and precision in digital conversion.
- Low power consumption, with options ranging from 490 to 765 mW, depending on the sample rate.
- Compact LP7DE package, facilitating integration into dense system designs.
Applications
- Medical Imaging: particularly in ultrasound systems where high-speed data conversion is critical.
- Industrial Imaging: used in various industrial imaging applications requiring high-resolution and high-speed data acquisition.
- Radar Systems: suitable for radar applications due to its high sample rates and multi-channel capability.
- High-Speed Data Acquisition: ideal for systems that require rapid and precise data conversion.
Q & A
- What is the sample rate of the HMCAD1100?
The HMCAD1100 has sample rates of 80, 105, and 125 MSPS. - How many channels does the HMCAD1100 have?
The HMCAD1100 is a quad-channel ADC. - What is the resolution of the HMCAD1100?
The resolution of the HMCAD1100 is 14 bits. - What is the power consumption of the HMCAD1100?
The power consumption ranges from 490 to 765 mW, depending on the sample rate. - What package does the HMCAD1100 come in?
The HMCAD1100 comes in an LP7DE package. - What are the typical applications of the HMCAD1100?
Typical applications include medical imaging, industrial imaging, radar systems, and high-speed data acquisition. - What is the operating temperature range of the HMCAD1100?
The operating temperature range is -40°C to 85°C. - Is the HMCAD1100 suitable for high-speed data acquisition?
Yes, it is highly suitable due to its high sample rates and multi-channel configuration. - Can the HMCAD1100 be used in radar systems?
Yes, it can be used in radar systems due to its high sample rates and precision. - Where can I find detailed specifications for the HMCAD1100?
Detailed specifications can be found on the official Analog Devices website or through authorized distributors like Digi-Key, Mouser, etc.
