Overview

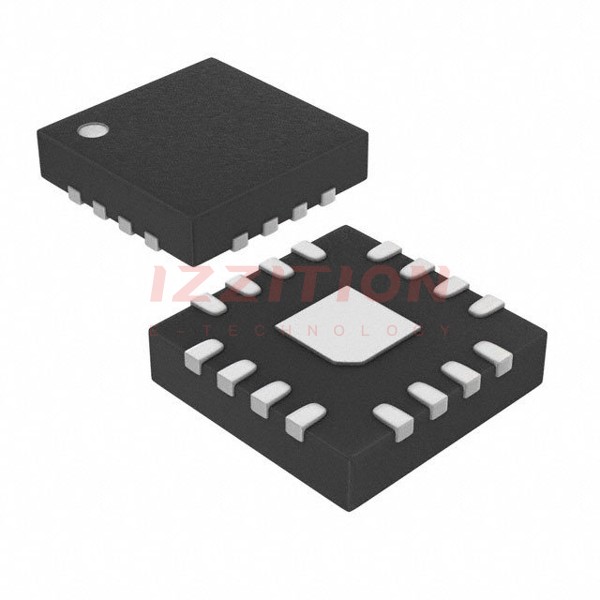

The HMC849ALP4CE is a high-isolation, non-reflective DC to 6 GHz GaAs pHEMT SPDT (Single-Pole Double-Throw) switch manufactured by Analog Devices Inc. This component is designed for use in various RF and microwave applications, offering high performance and reliability in a compact, leadless surface mount package.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency Range | DC to 6 GHz |
| Switch Type | SPDT (Single-Pole Double-Throw) |
| Isolation | High Isolation |
| Package Type | Leadless Surface Mount (QFN) |
| Leadframe Material | Copper Alloy |
| Operating Temperature | -40°C to +85°C |
Key Features
- High isolation and non-reflective design, ensuring minimal signal loss and distortion.
- Wide frequency range from DC to 6 GHz, making it suitable for various RF and microwave applications.
- Compact leadless surface mount package, enhancing board space efficiency.
- High reliability and performance due to GaAs pHEMT technology.
Applications
- RF and Microwave Systems
- Beamformers, Phase Shifters, and Vector Modulators
- Communications Analog Front Ends
- Frequency Dividers, Multipliers, and Detectors
- I/Q Modulators and Demodulators
- Phase Locked Loop (PLL) Synthesizer & Translation Loop
- Quadrature Digital Up Converters (QDUC)
- RF Integrated Transmitters, Receivers, and Transceivers
Q & A
- What is the frequency range of the HMC849ALP4CE? The frequency range is from DC to 6 GHz.
- What type of switch is the HMC849ALP4CE? It is a SPDT (Single-Pole Double-Throw) switch.
- What is the package type of the HMC849ALP4CE? It is a leadless surface mount package (QFN).
- What material is the leadframe made of? The leadframe is made of copper alloy.
- What is the operating temperature range of the HMC849ALP4CE? The operating temperature range is from -40°C to +85°C.
- What technology is used in the HMC849ALP4CE? It uses GaAs pHEMT technology.
- What are some common applications of the HMC849ALP4CE? Common applications include RF and microwave systems, beamformers, phase shifters, and various communication systems.
- Is the HMC849ALP4CE non-reflective? Yes, it is designed to be non-reflective.
- What is the isolation characteristic of the HMC849ALP4CE? It has high isolation.
- Where can I find detailed specifications for the HMC849ALP4CE? Detailed specifications can be found in the datasheet available on Analog Devices' official website and other electronic component distributors like Digi-Key and Farnell.
