Overview

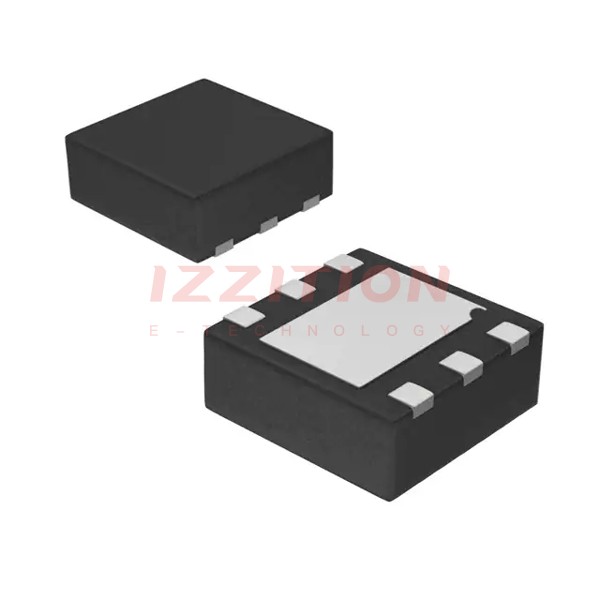

The HMC646LP2ETR is a high-performance RF switch IC designed and manufactured by Analog Devices Inc. This component is specifically tailored for applications requiring reliable and efficient RF signal switching within the frequency range of 0.1 to 2.1 GHz. The HMC646LP2ETR features a single-pole double-throw (SPDT) configuration, making it suitable for various wireless communication and radar systems.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Frequency | 2.1 GHz |
| Insertion Loss | 1.3 dB (Typical) |
| Off Isolation | 32 dB (Typical) |
| Minimum Operating Temperature | -40°C |
| Configuration | Single-Pole Double-Throw (SPDT) |
| Power Handling | 40W |
Key Features
- High Power Handling: The HMC646LP2ETR can handle up to 40W of power, making it suitable for high-power RF applications.
- Low Insertion Loss: With a typical insertion loss of 1.3 dB, this switch minimizes signal attenuation.
- High Off Isolation: The component offers high off isolation of 32 dB, ensuring minimal signal leakage when the switch is in the off state.
- Failsafe Operation: The switch is designed with failsafe operation, ensuring reliable performance even in the absence of control signals.
- Wide Operating Temperature Range: The HMC646LP2ETR operates reliably from -40°C to a maximum temperature specified in the datasheet.
Applications
- Wireless Communication Systems: Suitable for various wireless communication networks due to its high performance and reliability.
- Radar Systems: Ideal for radar applications requiring high power handling and low insertion loss.
- Phased Array Antennas: Can be used in phased array antenna systems where precise signal switching is critical.
Q & A
- What is the maximum frequency range of the HMC646LP2ETR?
The maximum frequency range of the HMC646LP2ETR is 2.1 GHz.
- What is the typical insertion loss of the HMC646LP2ETR?
The typical insertion loss of the HMC646LP2ETR is 1.3 dB.
- What is the off isolation of the HMC646LP2ETR?
The off isolation of the HMC646LP2ETR is typically 32 dB.
- What is the minimum operating temperature of the HMC646LP2ETR?
The minimum operating temperature of the HMC646LP2ETR is -40°C.
- What is the configuration of the HMC646LP2ETR?
The HMC646LP2ETR is configured as a single-pole double-throw (SPDT) switch.
- What is the power handling capability of the HMC646LP2ETR?
The HMC646LP2ETR can handle up to 40W of power.
- Is the HMC646LP2ETR failsafe?
Yes, the HMC646LP2ETR is designed with failsafe operation.
- What are some common applications of the HMC646LP2ETR?
The HMC646LP2ETR is commonly used in wireless communication systems, radar systems, and phased array antennas.
- Where can I find detailed specifications for the HMC646LP2ETR?
Detailed specifications for the HMC646LP2ETR can be found on the datasheet available on websites such as Mouser, DigiKey, and the official Analog Devices website.
- Is the HMC646LP2ETR RoHS compliant?
Yes, the HMC646LP2ETR is RoHS compliant, ensuring it meets environmental standards.
