Overview

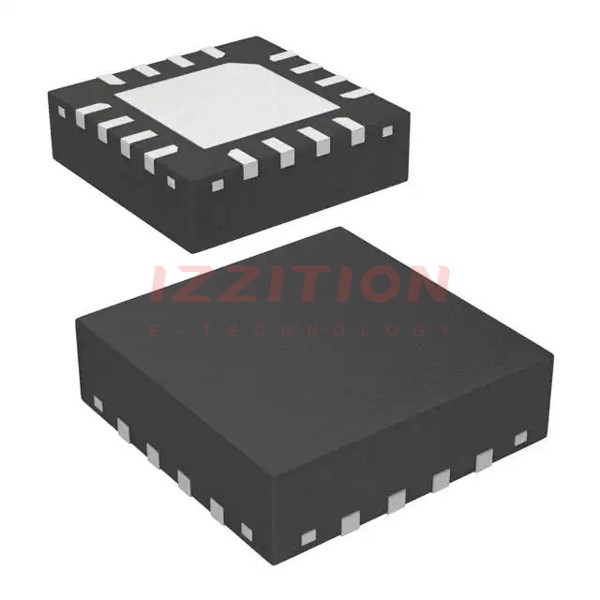

The HMC1118LP3DETR, produced by Analog Devices Inc., is a general-purpose, broadband, nonreflective single-pole, double-throw (SPDT) switch. It is packaged in a 3 mm × 3 mm, surface mount LFCSP package. This switch is designed to operate over a wide frequency range of 9 kHz to 13.0 GHz, offering high isolation and low insertion loss. It is controlled using positive control voltage logic lines of +3.3 V and 0 V and requires +3.3 V and −2.5 V supplies. The HMC1118 is internally matched to 50 Ω at the RF input and output ports, eliminating the need for external matching components.
Key Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 9 kHz to 13.0 GHz |
| Insertion Loss (up to 8.0 GHz) | 0.68 dB typical |
| Isolation | >48 dB |
| Settling Time (0.05 dB margin of final RFOUT) | 7.5 μs |
| 1 dB Compression Point (P1dB) | 37 dBm typical |
| Input Third-Order Intercept (IIP3) | 62 dBm typical |
| ESD Rating | 2 kV human body model (HBM) |
| Supply Voltages | +3.3 V and −2.5 V |
| Control Voltages | +3.3 V and 0 V |
| Package Type | 3 mm × 3 mm, 16-lead LFCSP |
Key Features
- High isolation and low insertion loss
- Internally matched to 50 Ω at RF input and output ports
- Positive control voltage logic lines of +3.3 V and 0 V
- Operates with single positive supply voltage and negative supply voltage tied to ground with some performance degradation
- No low frequency spurious
- Small value bypassing capacitor recommended on digital signal lines for improved RF signal isolation
Applications
- Test instrumentation
- Microwave radios and very small aperture terminals (VSATs)
- Military radios, radars, and electronic counter measures (ECMs)
- Fiber optics and broadband telecommunications
Q & A
- What is the frequency range of the HMC1118LP3DETR?
The HMC1118LP3DETR operates over a frequency range of 9 kHz to 13.0 GHz. - What are the typical insertion loss and isolation values for the HMC1118LP3DETR?
The typical insertion loss is 0.68 dB up to 8.0 GHz, and the isolation is greater than 48 dB. - What are the required supply voltages for the HMC1118LP3DETR?
The switch requires +3.3 V and −2.5 V supplies. - How is the HMC1118LP3DETR controlled?
The switch is controlled using positive control voltage logic lines of +3.3 V and 0 V. - What is the settling time of the HMC1118LP3DETR?
The settling time is 7.5 μs with a 0.05 dB margin of final RFOUT. - What is the ESD rating of the HMC1118LP3DETR?
The ESD rating is 2 kV human body model (HBM). - What type of package does the HMC1118LP3DETR come in?
The switch is packaged in a 3 mm × 3 mm, 16-lead LFCSP surface mount package. - Does the HMC1118LP3DETR require external matching components?
No, the HMC1118LP3DETR is internally matched to 50 Ω at the RF input and output ports. - What are some common applications of the HMC1118LP3DETR?
Common applications include test instrumentation, microwave radios, VSATs, military radios, radars, ECMs, and fiber optics and broadband telecommunications. - Can the HMC1118LP3DETR operate with a single positive supply voltage?
Yes, the HMC1118LP3DETR can operate with a single positive supply voltage applied to the VDD pin and the negative supply voltage (VSS) tied to ground, although some performance degradation may occur.
