Overview

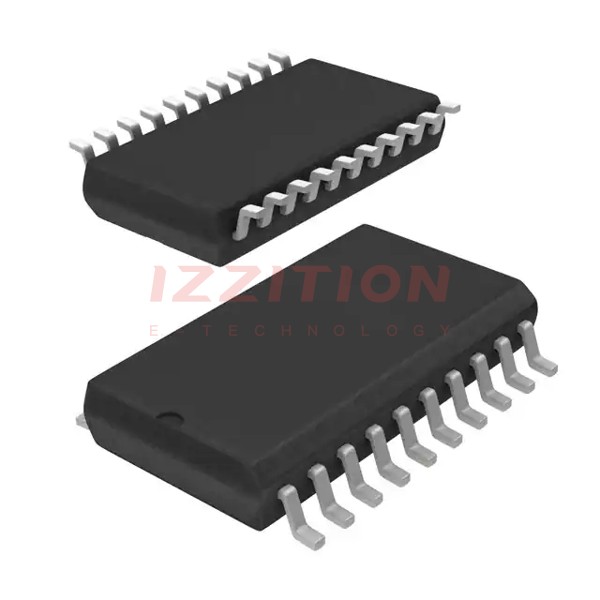

The DAC8229FSZ-REEL is a dual 8-bit digital-to-analog converter (DAC) produced by Analog Devices Inc. This integrated circuit is designed to provide high performance and reliability in various analog output applications. The device is packaged in a 20-lead SOIC (Small Outline Integrated Circuit) and is available in a tape and reel format, making it suitable for automated assembly processes.
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 8 bits |
| Number of DACs | 2 |
| Output Type | Voltage Output |
| Package Type | 20-SOIC |
| Packaging | Tape and Reel (TR) |
| Operating Temperature Range | -40°C to +85°C |
Key Features
- Dual 8-bit digital-to-analog converters for independent or synchronized operation.
- High accuracy and linearity with low noise and distortion.
- Compatible with both 3V and 5V logic levels.
- Low power consumption.
- Compact 20-lead SOIC package.
Applications
- Industrial control systems.
- Aerospace and defense systems.
- Medical devices requiring precise analog outputs.
- Automotive systems.
- Test and measurement equipment.
Q & A
- What is the resolution of the DAC8229FSZ-REEL? The resolution is 8 bits.
- How many DACs are included in the DAC8229FSZ-REEL? There are two DACs.
- What is the package type of the DAC8229FSZ-REEL? It is packaged in a 20-lead SOIC.
- What is the operating temperature range of the DAC8229FSZ-REEL? The operating temperature range is -40°C to +85°C.
- Is the DAC8229FSZ-REEL available in tape and reel format? Yes, it is available in tape and reel format.
- What are the typical applications of the DAC8229FSZ-REEL? Typical applications include industrial control systems, aerospace and defense systems, medical devices, automotive systems, and test and measurement equipment.
- Is the DAC8229FSZ-REEL compatible with both 3V and 5V logic levels? Yes, it is compatible with both 3V and 5V logic levels.
- What is the power consumption of the DAC8229FSZ-REEL? The DAC8229FSZ-REEL has low power consumption.
- Can the DAC8229FSZ-REEL be used in high-accuracy applications? Yes, it is designed for high accuracy and linearity with low noise and distortion.
- Where can I find detailed specifications for the DAC8229FSZ-REEL? Detailed specifications can be found on the datasheet available from Analog Devices Inc. or through distributors like Mouser and Digi-Key.
