Overview

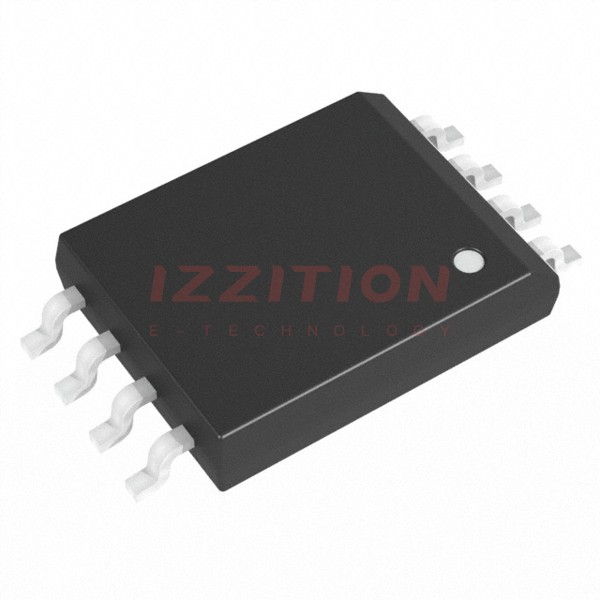

The ADUM7701-8BRIZ-RL is a digital isolator produced by Analog Devices Inc., utilizing the company's proprietary iCoupler technology. This component is designed to provide high-performance digital isolation, ensuring reliable and safe data transfer between isolated circuits. It is particularly useful in applications where electrical isolation is critical, such as in industrial control systems, medical devices, and automotive systems.
Key Specifications
| Specification | Value |
|---|---|
| Package Type | 8-Lead SOIC (Standard Small Outline Package) |
| Operating Temperature Range | -40°C to +125°C |
| Isolation Voltage | 5 kV rms for 1 minute |
| Data Rate | Up to 90 Mbps |
| Number of Channels | 1 Channel |
| RoHS Compliance | Yes |
Key Features
- High-speed digital isolation using iCoupler technology
- Up to 90 Mbps data rate
- 5 kV rms isolation voltage for 1 minute
- Operating temperature range from -40°C to +125°C
- 8-Lead SOIC package with increased creepage distance
- RoHS compliant
Applications
- Industrial control systems
- Medical devices requiring electrical isolation
- Automotive systems
- Power supplies and DC-DC converters
- Motor control and drive systems
Q & A
- What is the ADUM7701-8BRIZ-RL used for? The ADUM7701-8BRIZ-RL is used for high-speed digital isolation in various applications requiring electrical isolation.
- What is the operating temperature range of the ADUM7701-8BRIZ-RL? The operating temperature range is from -40°C to +125°C.
- What is the data rate of the ADUM7701-8BRIZ-RL? The data rate can be up to 90 Mbps.
- Is the ADUM7701-8BRIZ-RL RoHS compliant? Yes, it is RoHS compliant.
- What is the isolation voltage of the ADUM7701-8BRIZ-RL? The isolation voltage is 5 kV rms for 1 minute.
- What package type does the ADUM7701-8BRIZ-RL come in? It comes in an 8-Lead SOIC package.
- What are some common applications of the ADUM7701-8BRIZ-RL? Common applications include industrial control systems, medical devices, automotive systems, and power supplies.
- What technology does the ADUM7701-8BRIZ-RL use for digital isolation? It uses Analog Devices' iCoupler technology.
- Is the ADUM7701-8BRIZ-RL suitable for high-speed data transfer? Yes, it is suitable for high-speed data transfer up to 90 Mbps.
- Where can I find detailed specifications for the ADUM7701-8BRIZ-RL? Detailed specifications can be found in the datasheet available on Analog Devices' official website and other electronics distributors like Mouser and Digi-Key.
