Overview

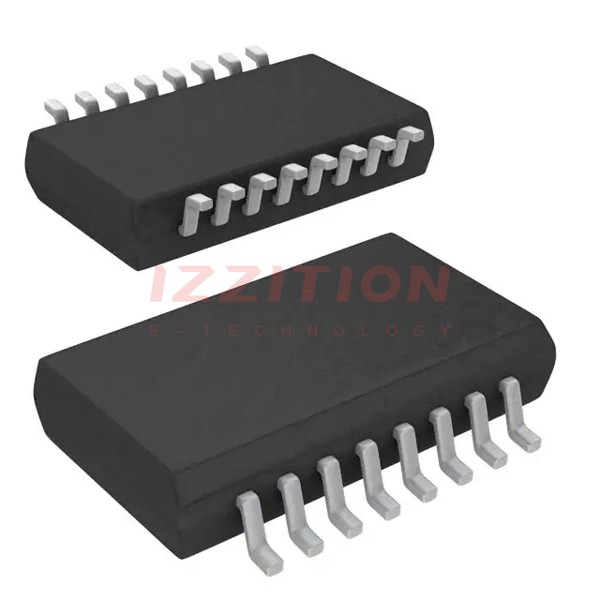

The ADUM263N0BRIZ-RL is a high-performance digital isolator produced by Analog Devices Inc. This component is designed to provide robust signal isolation in demanding industrial environments. It features a 6-channel configuration, each capable of supporting a data rate of up to 150 Mbps. The device operates within a wide supply voltage range of 1.7 V to 5.5 V, making it versatile for various power sources. The ADUM263N0BRIZ-RL is housed in a 16-pin SOIC package, ensuring easy integration into existing designs.
Key Specifications
| Parameter | Value |
|---|---|
| Package | 16-SOIC (0.295", 7.50mm Width) |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 1.7 V ~ 5.5 V |
| Operating Temperature Range | -40°C to 125°C |
| Magnetic Coupling Technology | iCoupler |
Key Features
- High Isolation: 5kV isolation rating ensures reliable data transmission in noisy environments.
- Fast Data Rate: 150 Mbps per channel enables high-speed communication without signal degradation.
- Wide Supply Range: Operates between 1.7 V and 5.5 V, making it versatile for different power sources.
- Robustness: Reinforced insulation ensures the device can withstand common-mode transients in industrial applications.
- CMOS Compatibility: Compatible with CMOS input and output levels, ensuring compatibility with a variety of digital systems.
- Environmental Compliance: RoHS compliant, meeting environmental regulations.
Applications
The ADUM263N0BRIZ-RL is designed for various industrial applications, including:
- Industrial Automation: Isolates data signals in motor control and other automation systems.
- Sensor Interfaces: Ensures reliable signal isolation for sensor interfaces.
- Isolated Power Supplies: Used in isolated power supply systems to enhance safety and reliability.
Q & A
- Q: What is the isolation voltage rating of the ADUM263N0BRIZ-RL?
A: The ADUM263N0BRIZ-RL has a 5kV isolation voltage rating. - Q: What is the data rate of the ADUM263N0BRIZ-RL?
A: The data rate is up to 150 Mbps per channel. - Q: What is the operating temperature range of the ADUM263N0BRIZ-RL?
A: The operating temperature range is -40°C to 125°C. - Q: Is the ADUM263N0BRIZ-RL RoHS compliant?
A: Yes, the ADUM263N0BRIZ-RL is RoHS compliant. - Q: What is the package type of the ADUM263N0BRIZ-RL?
A: The package type is 16-SOIC (0.295", 7.50mm Width). - Q: What are the typical applications of the ADUM263N0BRIZ-RL?
A: Typical applications include industrial automation, sensor interfaces, and isolated power supplies. - Q: How many channels does the ADUM263N0BRIZ-RL have?
A: The ADUM263N0BRIZ-RL has 6 channels. - Q: What is the common mode transient immunity of the ADUM263N0BRIZ-RL?
A: The common mode transient immunity is 75kV/µs. - Q: What is the propagation delay of the ADUM263N0BRIZ-RL?
A: The propagation delay is up to 13ns for both tpLH and tpHL. - Q: Where can I find detailed information about the ADUM263N0BRIZ-RL, such as application notes and datasheets?
A: You can find detailed information on the Analog Devices website or through authorized distributors like Ovaga, Heisener, and Arrow Electronics.
