Overview

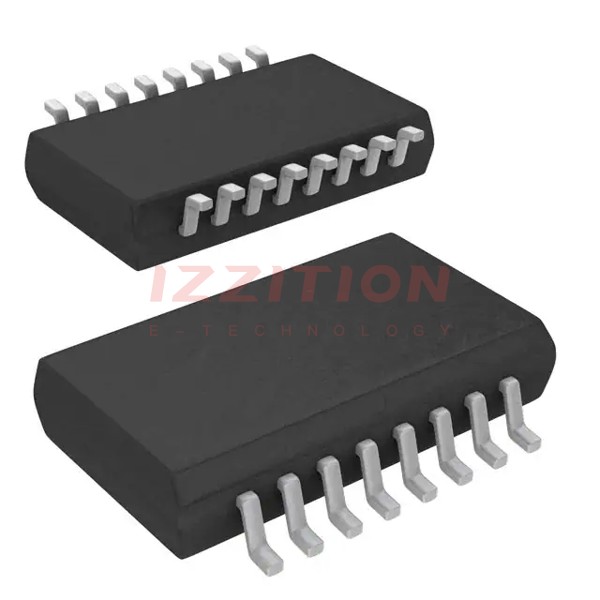

The ADuM261N0BRIZ-RL, produced by Analog Devices Inc., is a 6-channel digital isolator that utilizes Analog Devices' iCoupler technology. This component combines high-speed data transfer with robust isolation, making it suitable for a variety of applications requiring high reliability and noise immunity. The device operates with supply voltages ranging from 1.7 V to 5.5 V, enabling compatibility with lower voltage systems and voltage translation across the isolation barrier. It ensures dc correctness even in the absence of input logic transitions and offers two fail-safe options for output states when the input power supply is not applied.
Key Specifications
| Parameter | Min | Typ | Max | Unit | Test Conditions/Comments |
|---|---|---|---|---|---|
| Number of Channels | 6 | - | - | - | - |
| Maximum Data Rate | - | - | 150 Mbps | - | - |
| Maximum Propagation Delay | - | - | 13 ns (at 5 V) | - | - |
| Pulse Width Distortion | - | - | 4.5 ns (at 5 V) | - | - |
| Channel to Channel Matching of Propagation Delay | - | - | 4.0 ns | - | - |
| Withstand Voltage Rating | - | - | 5.0 kV rms | - | - |
| Minimum Operating Supply Voltage | 1.7 V | - | - | V | - |
| Maximum Operating Supply Voltage | - | - | 5.5 V | V | - |
| Common-Mode Transient Immunity | - | - | 100 kV/μs | - | - |
Key Features
- High-speed data transfer with a maximum guaranteed data rate of 150 Mbps.
- High common-mode transient immunity of 100 kV/μs, providing robustness to radiated and conducted noise.
- Low propagation delay of 13 ns at 5 V operation and 15 ns at 1.8 V operation.
- Channel to channel matching of propagation delay is tight at 4.0 ns maximum.
- Withstand voltage rating of 5.0 kV rms.
- Operates with supply voltages ranging from 1.7 V to 5.5 V, enabling voltage translation functionality across the isolation barrier.
- Ensures dc correctness in the absence of input logic transitions.
- Two different fail-safe options for output states when the input power supply is not applied).
Applications
- Industrial field bus isolation.
- Serial peripheral interface (SPI) and data converter isolation).
- General-purpose digital isolation in high-reliability systems).
- Systems requiring high noise immunity and low propagation delay).
Q & A
- What is the maximum data rate of the ADuM261N0BRIZ-RL?
The maximum guaranteed data rate is 150 Mbps).
- What is the maximum propagation delay of the ADuM261N0BRIZ-RL at 5 V operation?
The maximum propagation delay is 13 ns at 5 V operation).
- What is the withstand voltage rating of the ADuM261N0BRIZ-RL?
The withstand voltage rating is 5.0 kV rms).
- What is the common-mode transient immunity of the ADuM261N0BRIZ-RL?
The common-mode transient immunity is 100 kV/μs).
- What are the supply voltage ranges for the ADuM261N0BRIZ-RL?
The supply voltage ranges from 1.7 V to 5.5 V).
- Does the ADuM261N0BRIZ-RL ensure dc correctness in the absence of input logic transitions?
Yes, it ensures dc correctness even in the absence of input logic transitions).
- What fail-safe options are available for the ADuM261N0BRIZ-RL?
Two different fail-safe options are available by which the outputs transition to a predetermined state when the input power supply is not applied).
- What is the channel to channel matching of propagation delay for the ADuM261N0BRIZ-RL?
The channel to channel matching of propagation delay is tight at 4.0 ns maximum).
- Is the ADuM261N0BRIZ-RL compliant with RoHS regulations?
Yes, the ADuM261N0BRIZ-RL is RoHS compliant).
- What are some typical applications of the ADuM261N0BRIZ-RL?
Typical applications include industrial field bus isolation, SPI and data converter isolation, and general-purpose digital isolation in high-reliability systems).
